Motorcycle Rotor Brake Disk Cover
Free

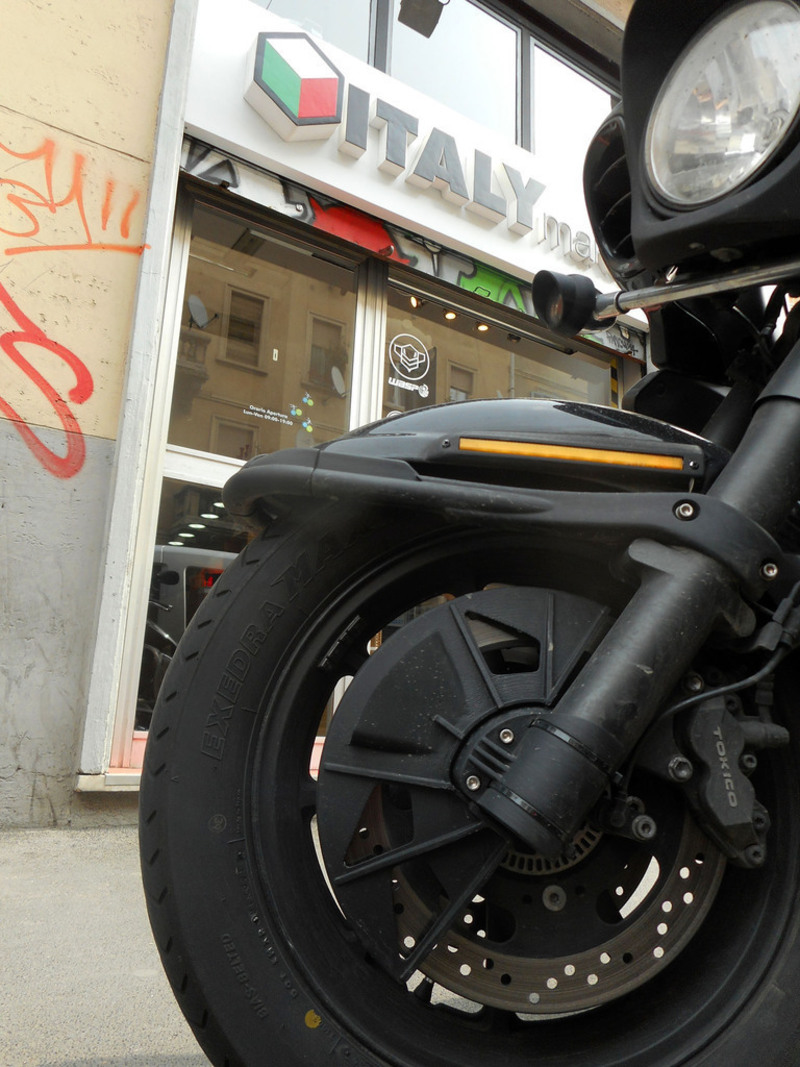

Summary Here you have a complete project to create a pair of rotor disk covers for your bike. They fit all kind of bike with a 60 mm diameter fork legs, no matter the brand, even if I designed for Jap bikes like mine (Honda, Yamaha, Kawasaki or Suzuki). Here you find the right one, you just have to X mirror them to have the left version. IMPORTANT for your safety: you have to print it in a very industrial way to reach enought stiffness to run safely. PLEASE read the information about PRINTING SETTINGS! Print Settings Rafts: No Supports: Yes Resolution: 0.4 Infill: 30% Notes: IMPORTANT NOTICE: My covers are shared just for expert Makers. DONT try to make it with a common nozzle 0.4 desktop machines, you risk to avoid damages or accidents on your bike and for you. USE a 0.8 NOZZLE and 0.35/0.4 layer high with ABS, or ABS PRO, HIPS or similar, very strong materials. DONT use PLA!!! Use 2.4 or 3.2 shell thickness (3/4 perimeters on 0.8 nozzle). With a big nozzle and ABS or professional material, you will be able to mount them and use them safely for a ton of miles. Actually my covers have 2.000 km without problems at all. Post-Printing PRINT the dx or the sx version and assemble them using stainless steel bolts. Use the stongest cable ties 5 or 6 mm large you could find. If you like, you can put a double-side industrial adhesive tape on the back side, to prevent turnings around the leg. Actually my covers did'nt turn at all, even without the tape.

Loading comments...

Loading prints...

Motorcycle Rotor Brake Disk Cover

likes
2 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
copridisco.stl
STL Model
5.6 MB
File size
View 3D
attaccodisco.stl
STL Model
5.6 MB
File size
Free download - login required
Downloaded: 64 times
