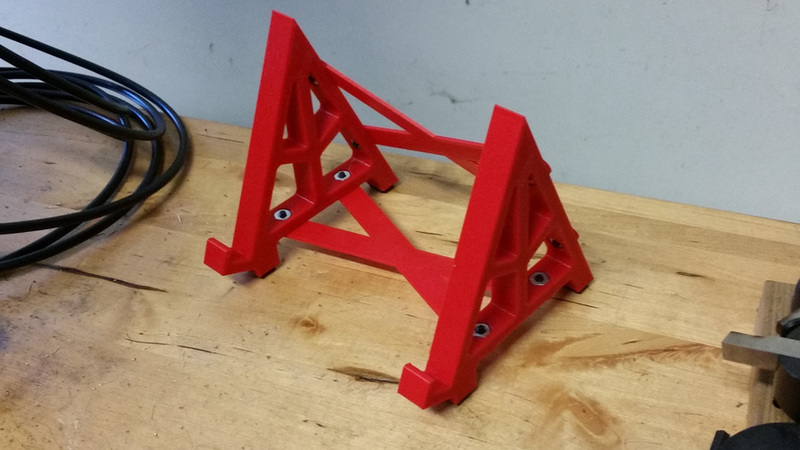

Summary I needed a means of holding a 7" Android tablet in the shop where I could see and interact with it while using a milling machine. (The tablet displays readouts from the milling machine.) This holder serves this function nicely. Print Settings Printer Brand: Prusa Printer: Prusa Steel Rafts: No Supports: No Resolution: .200mm Infill: 20% Cubic Notes: Printer model is really an i3 MK2 (but this wasn't one of the choices.) Two "Tablet Holders" and one each of the braces will need to be printed. Post-Printing To assemble, 8 #6-32 x3/8" button head screws and 8 #6-32 nuts are needed. I also mounted rubber feet to the bottom to reduce the tendancy to slide will interacting with the tablet, How I Designed This The design was laid down in 2D and then extruded to 3D. Screw holes and nut pockets added after extrusion. Design tool was TurboCAD 21.
Loading prints...
Tablet Holder
