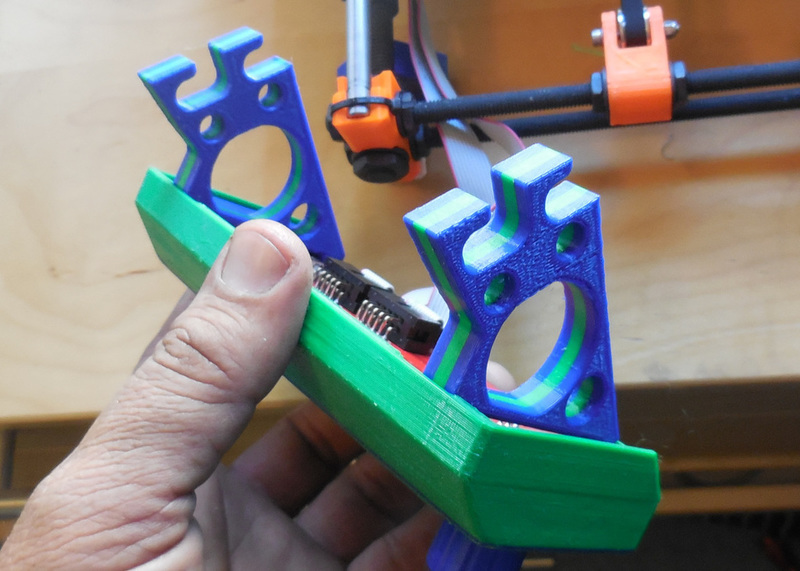

Summary I love my Prusa i3 MK2 printer but I didn't really like the way that the LCD brackets clipped to the printer (with zip ties to reinforce the connection.) So I decided to create a new bracket that slips over the thread bars at the front of the printer. No zip ties needed to keep the brackets on the printer. Print Settings Printer: Prusa i3 MK2 Rafts: No Supports: No Resolution: .350mm or finer Infill: 20% Cubic Notes: I printed mine in PETG (with two coloring layering just for fun...) With ABS, scale up a bit to account for shrinkage. Print one bracket of each type. Post-Printing Assembly is identical to installing the original LCD brackets.
Loading prints...
Prusa i3 MK2 LCD Mounts
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
Files Included
2 downloadable files:
Downloaded: 98 times
