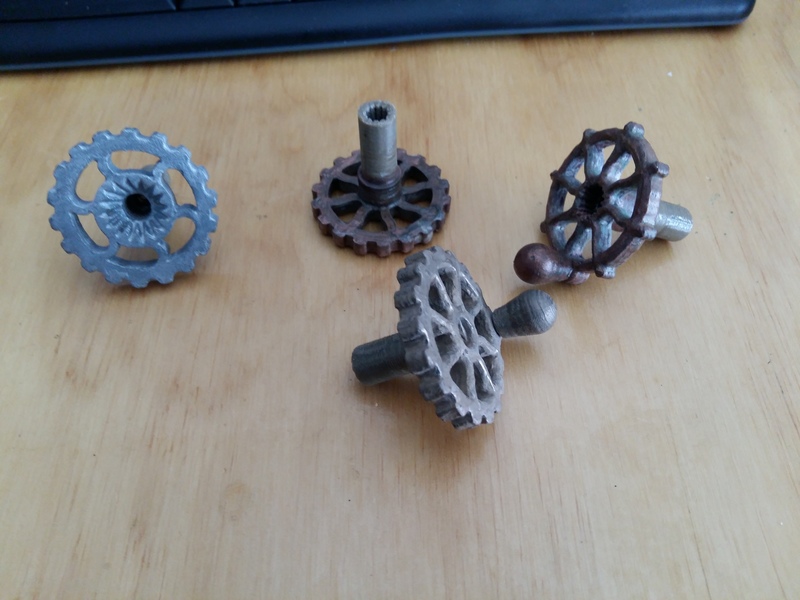

This is a collection of cranks for an RV / Trailer window mechanism with a 5/16 or 8mm spline shaft. The variations relate to the length of the stem at the back as some are embedded in windows a bit more than others. Two of the versions don’t require the knob. Printed mine in ABS then covered with copper and aluminum powder mixed with acetone. I am sure they will work well painted or left plain.
The knob needs a 3/32 x 3/8 or 3mm x 10mm bolt. There is a spot for the nut as well if you want to pause the print and drop one in but I discovered the bolts thread in nice and strong without.
Prints best at resolutions at .3 mm or under lest the splines get a bit fuzzy.
Loading prints...
RV Trailer Window Crank Steampunk
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
