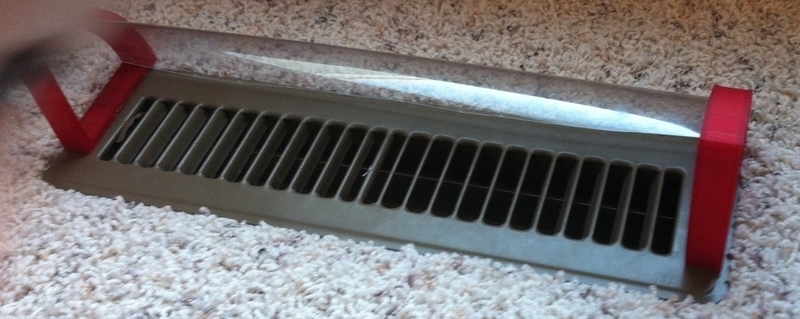

Customizable forced air vent deflector
Free
Summary This forced air deflector is used as an attachment to a central heating and cooling system. This component is part of an open source lab library, by the Michigan Tech's Open Sustainability Technology Research Group. For similar see the Open-Source Lab How to Build Your Own Hardware and Reduce Research Costs Instructions Simply attach to the air duct with magnets and it will redirect the flow of hot or cold air. Size to fit your application and the magnets you have, print and assemble with rigid plastic sheet. Can be customized for all vents in all locations: floor, wall or ceiling. BOM 2 cylindrical magnets 1 sheet rigid material size for vents print 2 of the sides glue or epoxy to hold magnets in - if you don't make them press fit.

Loading comments...

Loading prints...

Customizable forced air vent deflector

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

View 3D
air_vent.stl
STL Model
151.6 KB
File size
Free download - login required
Downloaded: 49 times
