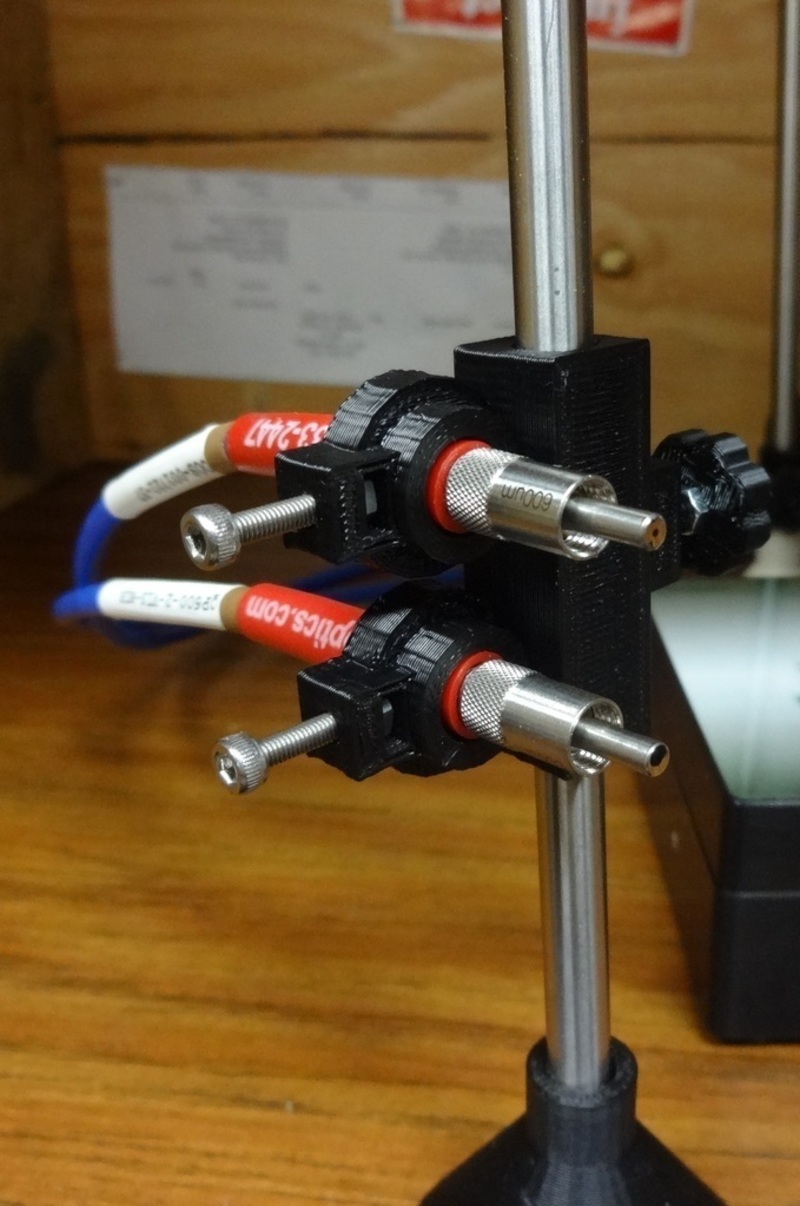

Fiber optic cable switcher
Free
Summary This is a holder to attach two fiber optic cable to a 8mm smooth rod and allow easy switching between cables for optical experiments. This component is part of the Open-source optics project, whose goal is to radically reduce the cost of scientific optical hardware: by the [Michigan Tech's Open Sustainability Technology Research Group]( http://www.mse.mtu.edu/MOST). For similar see the Open-Source Lab How to Build Your Own Hardware and Reduce Research Costs Instructions Print on your favorite open-source 3D printer. The two fiber optic cables are placed within the holder is held in place with a set screw. Use thumb screw from http://www.thingiverse.com/thing:30500 to attach it to an 8mm smooth rod. If you need the base go to http://www.thingiverse.com/thing:28133 Full information here Thanks to Chenlong for the designs. This component is part of the Open-source Optics Library: Zhang C, Anzalone NC, Faria RP, Pearce JM (2013) Open-Source 3D-Printable Optics Equipment. PLoS ONE 8(3): e59840. This is part of a larger project to reduce the cost of scientific equipment using open-source hardware. Read more here

Loading comments...

Loading prints...

Fiber optic cable switcher

like
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
fiber_switch_revised_5.STL
STL Model
132.3 KB
File size
Free download - login required
Downloaded: 29 times
