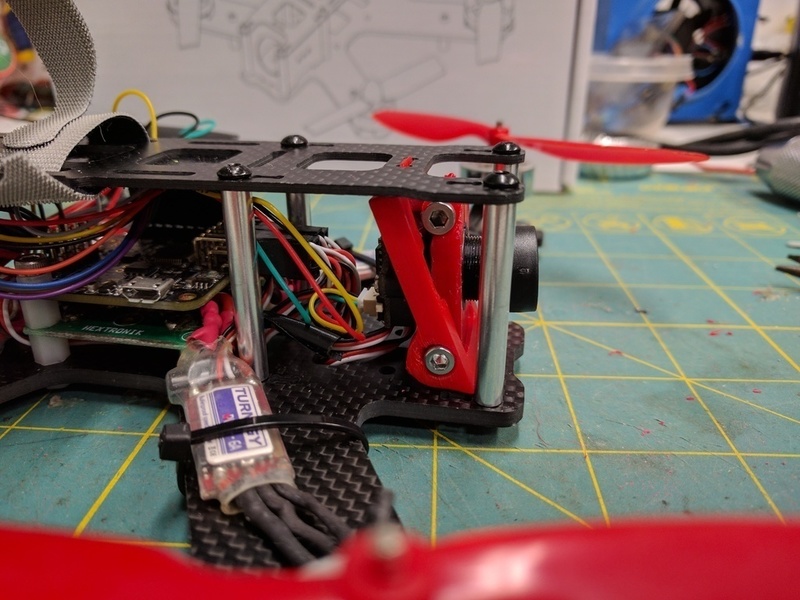

FPV Camera Mount for QAV210 / H210 Quadcopter
Free
Summary I wanted a simple adjustable angle FPV bracket for my Crazepony (Crazypony) H210 and 700TVL FPV camera. I couldn't find one that I really liked to I put this together. It's intended to be adjustable, simple & lightweight. I also included the Solidworks 2016 files for remixing. Print Settings Printer: Snowstock delta Rafts: No Supports: No Resolution: 0.2mm Infill: 50% Notes: Used 3.0mm Verbatim PLA Post-Printing Drill & tap appropriate places for M3 thread Drill appropriate clearance holes for M3 screws Hardware Needed: M3 x 14mm SHCS for FPV camera mount M3 x 25mm SHCS for angle bracket

Loading comments...

Loading prints...

FPV Camera Mount for QAV210 / H210 Quadcopter

likes
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
Camera_Holder_REV1.STL
STL Model
61.7 KB
File size
View 3D
Camera_mount_base_REV1.STL
STL Model
62.2 KB
File size
Free download - login required
Downloaded: 48 times
