Summary
After a couple years of use, I noticed the original MendelMax 1.5 Y-Axis motor mount was creeping under belt tension. So I designed this mount to provide improved support for the Y-axis motor.
How I Designed This
Designed in Solidworks 2016. I've attached the original .prt file for your re-mixing fun.
Loading prints...

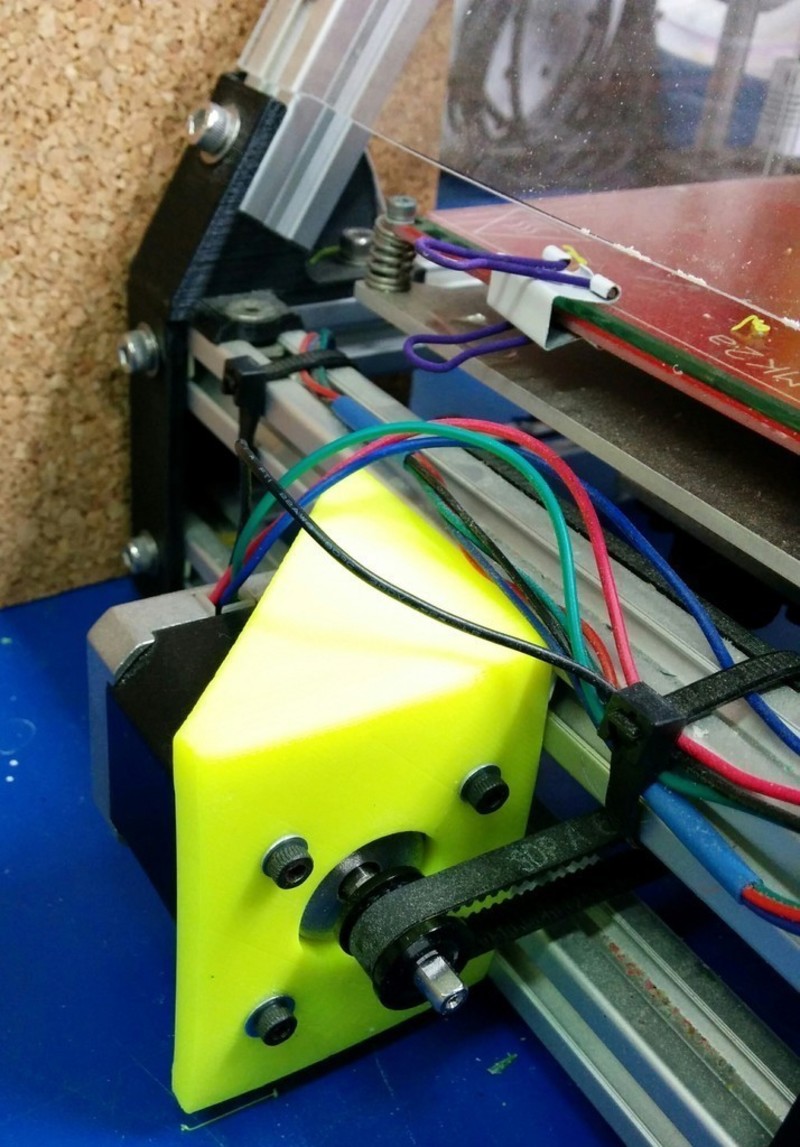

Y-Axis Motor Mount, improved
