Shapeoko 2 Drag Chain Mounts
Free

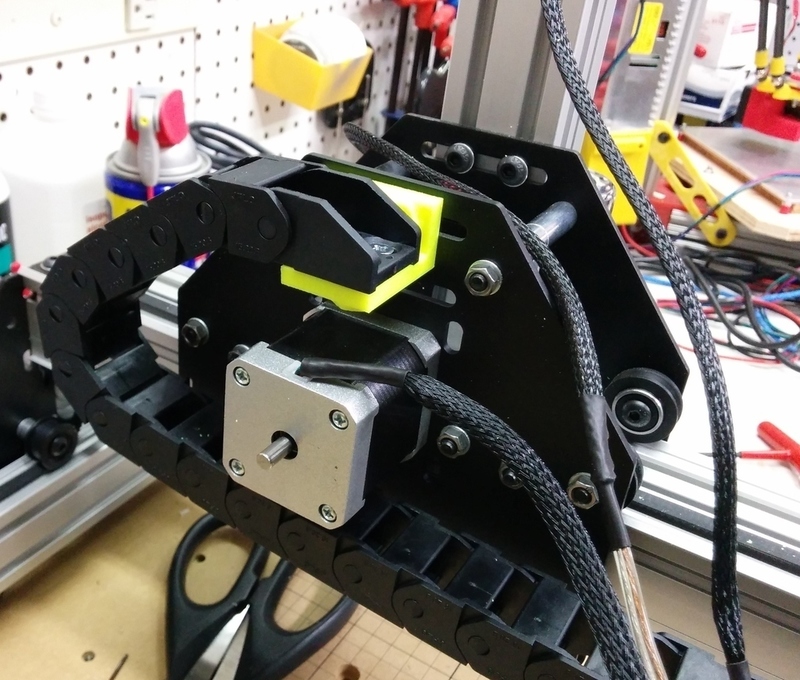

Summary I needed some solid mounts to attach the Inventables drag (cable) chains to my Shapeoko2. The drag chains came with the Shapeoko 2 "The Works" kit but didn't include a method to attach them to the machine. This is an assortment of cable chain mounts- I'm trying different configurations to find one that I like. The various part revisions are different mounting options for each cable chain end. I've included the Solidworks 2014 files for your modification needs. 2015.11.17 Update: I added two additional mount types. The new mounts were created in Solidworks 2016 Instructions Use M4 x 12mm FHS and M4 nuts to attach the drag chain end to the printed mount. Use M5 SHCS & nuts to attach the mounts to the Shapeoko. I printed these in ABS, 0.2mm layer, 50% fill, no support. YMMV.

Loading comments...

Loading prints...

Shapeoko 2 Drag Chain Mounts

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

8 downloadable files:

View 3D
Drag_Chain_Mount_X_Axis_Carriage_End_Mount_REV1.STL
STL Model
437.8 KB
File size
View 3D
Drag_Chain_Mount_X_Axis_Outboard_End_REV1.STL
STL Model
350.9 KB
File size
View 3D
Drag_Chain_Mount_X_Axis_Outboard_End_REV2.STL
STL Model
297.5 KB
File size
View 3D
Drag_Chain_Mount_X_Axis_Carriage_End_Mount_REV2.STL
STL Model
334.4 KB
File size
View 3D
Drag_Chain_Mount_Y_Axis_Outboard_End_REV1.STL
STL Model
51.3 KB
File size
View 3D
Drag_Chain_Mount_Y_Axis_Carriage_End_REV1.STL
STL Model
276.3 KB
File size
View 3D
Drag_Chain_Mount_X_Axis_Carriage_End_45_degree_Mount_REV1.STL
STL Model
226.7 KB
File size
View 3D
Drag_Chain_Mount_Y_Axis_Outboard_End_90_degree_bracket_REV1.STL
STL Model
428.6 KB
File size
