Summary

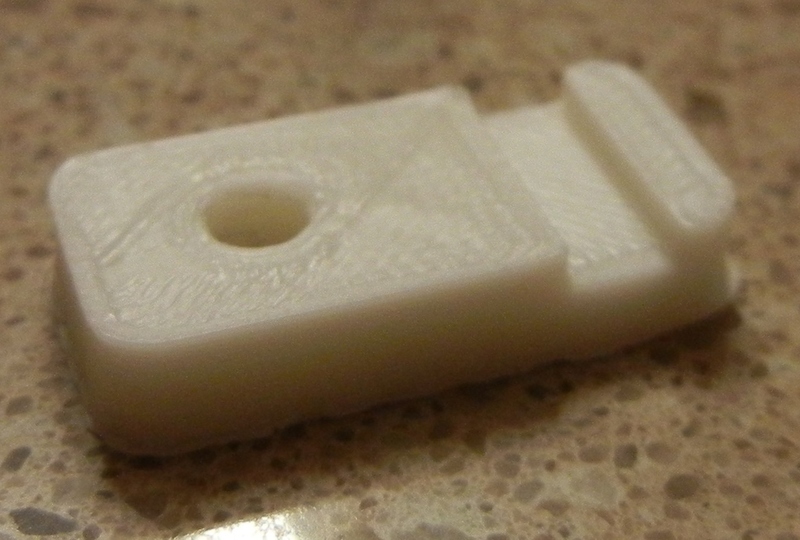

These clips are designed to hold low voltage wires for LED undercabinet lighting in place. The wires this particular clip is intended for are about 0.140" wide by 0.068" tall.
Use a #6 flat head screw to hold in place. The back side of the clip is countersunk for the screw head.
Instructions
This part is designed in Solidworks 2012. The .STL and .PRT files are included.
Loading prints...
Undercabinet Light Wire Clip
