Summary

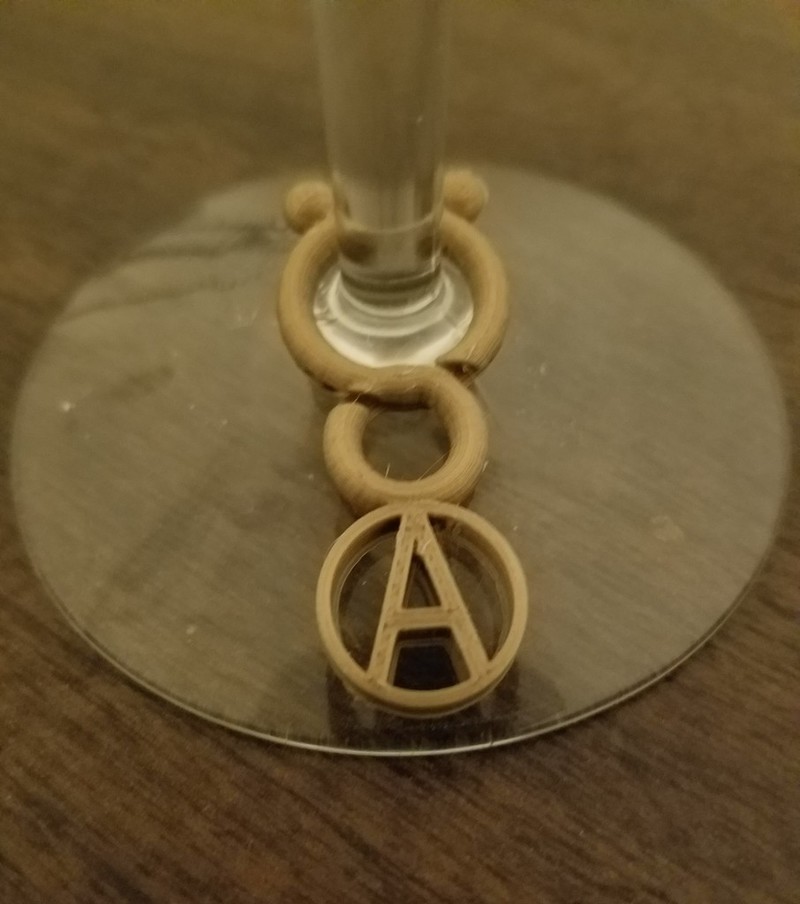

This is a set of 26 alphabet wine glass charms, with a box to hold them in. The charms should be printed without supports, the two arms of the spring clip cross each other, but should be no problem for bridging (I did not change any settings from defaults for my Prusa i3 Mk2).
If you want to print all 26 at once, there is the A-Z STL file where they are all arranged to fit on the printer bed. You can print the individual ones from the STL files with the corresponding letter in the name. It took me about 6 hours to print all 26 charms at once, or 16-20 minutes per charm if printed separately.
There is also a blank charm, just the spring clip and the ring, you can use it to fit in any object or text of similar size.
The box and the lid can be printed together. The lid is fitted pretty tightly but easy enough to pry open. I printed everything from PLA.
Print Settings
Printer Brand:
Prusa Printer:
Prusa Mk2 Rafts:
No Supports:
No Resolution:
0.2mm (charms), 0.35mm (box) Infill:
concentric or none Notes:
Charms don't really have infill (there may be few layers inside the little spheres, any infill will do). For the box, either increase the number of vertical shells so you don't need infill, or set concentric infill.
