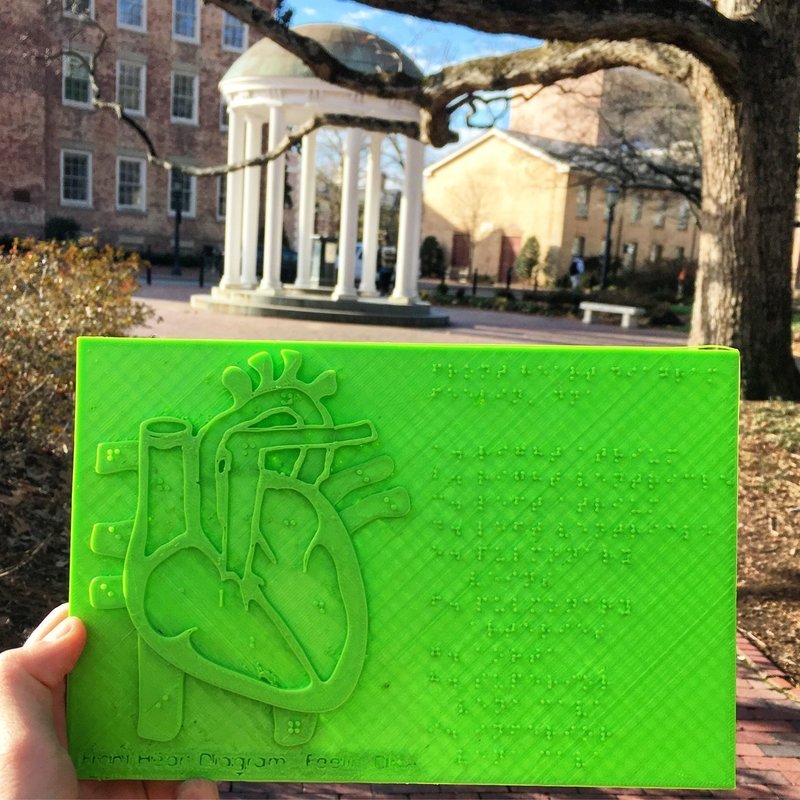

I created a front diagram of a human heart with all chambers and veins labeled in braille to the side as a visual aid for visually impaired students who wish to pursue STEM or need help in their science classes. A student should be able to feel the detailings of the heart with their left hand and read the key to the left. Since this design is a thin plate, it can easily be stacked away with other similar models until its next use. This model was created in Solidworks and was printed using a Lulzbot TAZ printer at normal quality with HIPS filament. My school recently switched to using ColorFabb XT as our main printing filament so I would recommend it since this material is much stronger! Printing with a good filament will prevent the braille from breaking off.
Loading prints...
Heart Projection with Braille
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
Files Included
1 downloadable file:
Downloaded: 93 times
