THIS PART ALLOWS YOU TO SPACE THE ROSE OFF OF THE FACE OF THE NON FIRE RATED DOOR.
NON FIRE RATED PART. DO NOT USE ON LABELED OPENINGS.
ASSUMING YOU HAVE A PREP THROUGH THE CLADDING ( GLASS FOR EXAMPLE ) YOU CAN USE THIS SPACER TO ALLOW FLUSH MOUNTING OF THE TRIM ROSE TO THE GLASS. USE KNURLED SURFACE IS POSITIONED AGAINST THE DOOR SECURED IN PLACE BY 2 WAFER HEADED SCREWS. YOU WILL ALSO HAVE TO ORDER THE PROPER LENGTH SPINDLE AND POSTS FROM SARGENT TO COMPLETE THE INSTALLATION. THE SPACER IS DESIGNED TO ACCEPT THE FACTORY CONFIGURATION FOR THE POSTS AND SPINDLE.
THIS SPACER IS FOR 1 1/2" CLADDING ON ONE SIDE OF THE DOOR.
8200 SARGENT LINE.
IF YOU NEED ANOTHER LENGTH CONTACT ME
Loading prints...

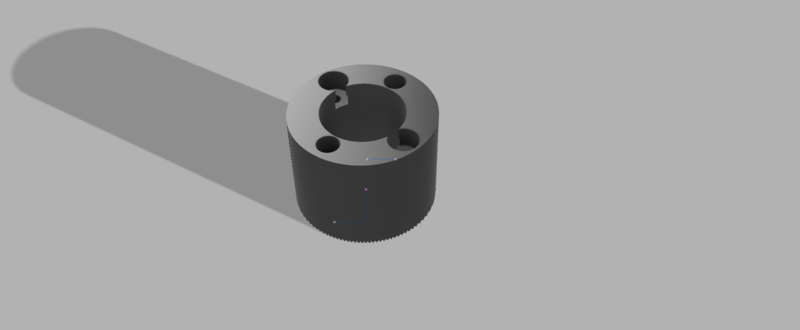

TRIM SPACER FOR SARGENT 8200 MORTISE LOCKS
