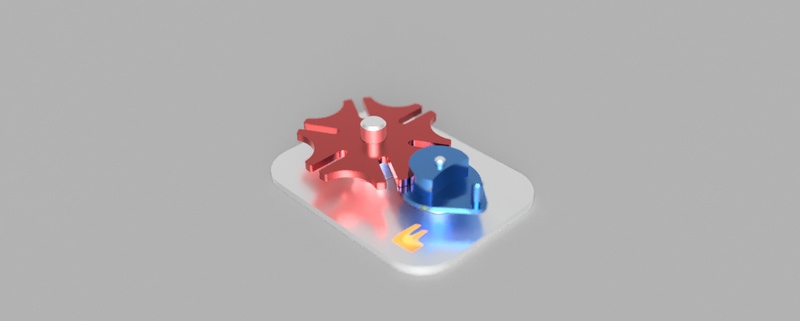

There are three models in this project.
1. Geneva drive
2. Drive Cam
3. Base
Modelling, renderings and motion study for the mechanism are done in Autodesk Fusion 360.
