UPGRADED NOV-24-2017
*support for x limit switch added
*option for tying hot end cable (so the heater can not fall out)
*a second model with support for mounting the PLA cooling fan
see pictures :-)
for this model with a hot end with cool fin dimensions 25mm x 32mm please see:
https://pinshape.com/items/405...
------------------------------------------------------------------------------------------------------------------------------------------------------------

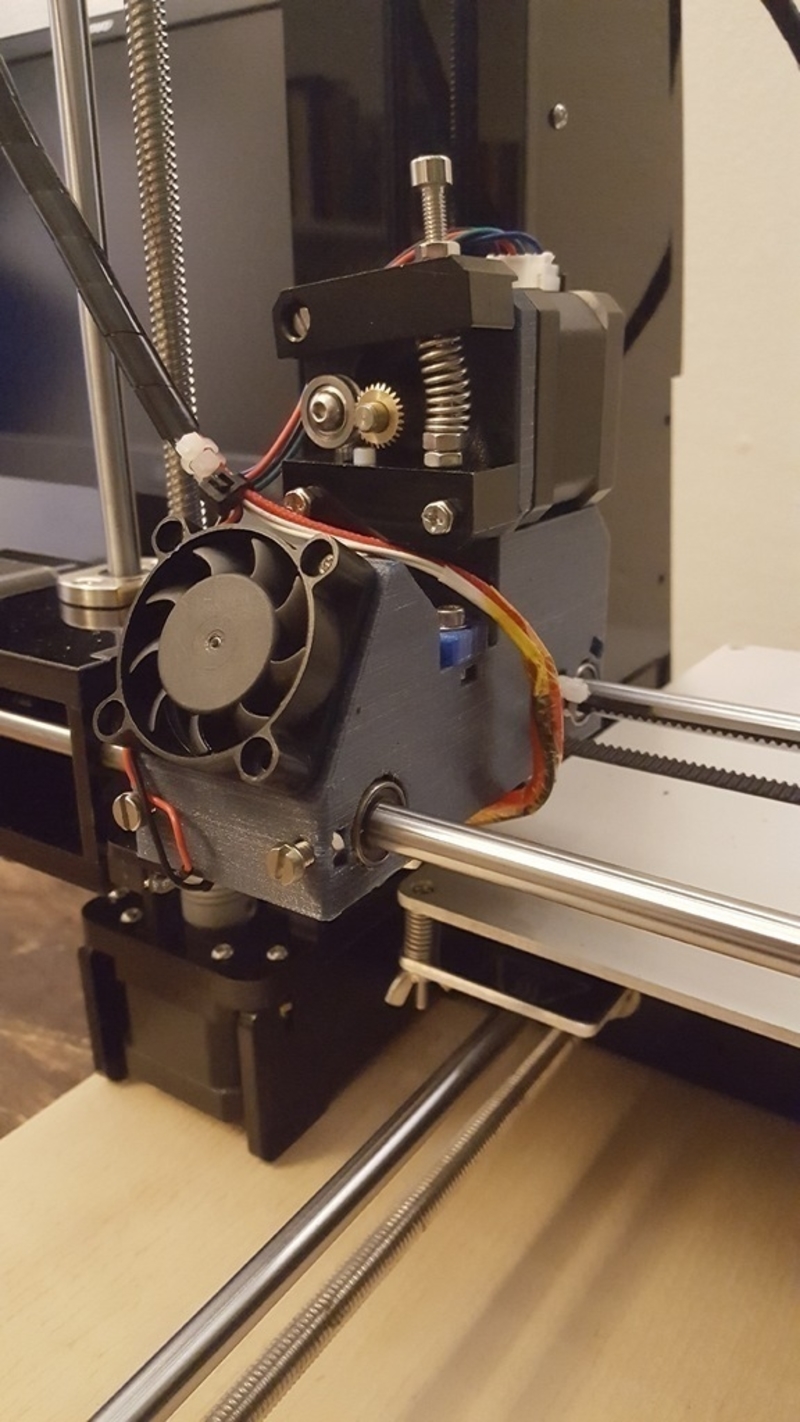

I wanted to mount a chines J-hotend to a A6 Anet printer, but for that i had to make a new X wagen. The dimentions for the cooling fins/parts are: diameter 22,25mm X 26mm. The Original bearing, fan, extruder and end-switch can be reused. I made this for ABS printing, so there is no place for a cooling fan for PLA users... sorry i printed this in PET-G. In the STL file 1 is a Cylinder on the place where the hotend wil come to sit. You can break this cylinder out after the print is ready, this cylinder is for support while printing.
I wanted to mount a better hotend for ABS printing on a cheap Anet printer and be able to cool it good.
Loading prints...
Anet A6 J-Hotend mod 22.26mm x 26mm (UPGRADED NOV-24-2017)
Creative Commons Attribution-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.
Licensed under CC BY-SA
Files Included
5 downloadable files:
Downloaded: 86 times
