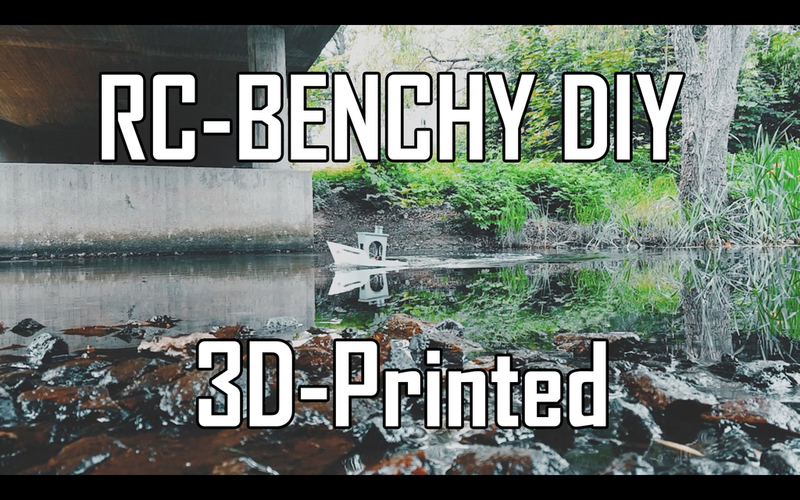

So i decided to make an RC-Benchy boat. Its printed with 25% infill ABS I printed it on my regular prusa printer and my D-bot. I glued the parts with ABS-slurry (A cup of Acetone and some abs filament for glue) I also used the slurry and applied it to the body to make it waterproof, 2-3 layers. There is one thing i would have done differently then i assembled the motor DO NOT use a glue gun, buy some epoxy-glue instead. I have some small leakage from the motor, so i removed all the glue and used ABS-juice to glue those parts also, but epoxy would have been a better option. I also integrated the support for the servo in the hull.
The parts I have been using is these:
- Rc-controller - https://goo.gl/qMHYCG
- ESC - https://goo.gl/7bu7ou
- Servo - https://goo.gl/igrLKy
- Steel shaft for servo - https://goo.gl/bGjfY
- Water proof plastic organ sleeve - https://goo.gl/X2DQ3i
- Lipo battery - https://goo.gl/Sz3hNR
- Lipo battery if not shipping to your country - https://goo.gl/1NdsGF
- Battery charger - https://goo.gl/ARW9yc
- Jet motor - https://goo.gl/6TM7CJ
- Epoxy-glue - https://goo.gl/wux3mr
- XT-cable converter https://goo.gl/KfVtNN
- 3 mm inner diameter sillicone tube - https://goo.gl/1QEdMs
- Tools: 3D-printer - https://goo.gl/VTXWFa
- Solderiron - https://goo.gl/SE2Kiz
- Solder helpinghand - https://goo.gl/nwfH0x
- Cutting Plier - https://goo.gl/nwfH0x
Build instructions here:
- https://www.youtube.com/watch?...
- Instructables step-by-step guide: http://www.instructables.com/i...
- In action:
