Summary
This 3d printed turtle uses the same flex concept from my Mini Monster Truck to create legs that allow the toy to bounce and scurry around when tapped. The head can also retract into the shell. Check out my process for designing this thing here

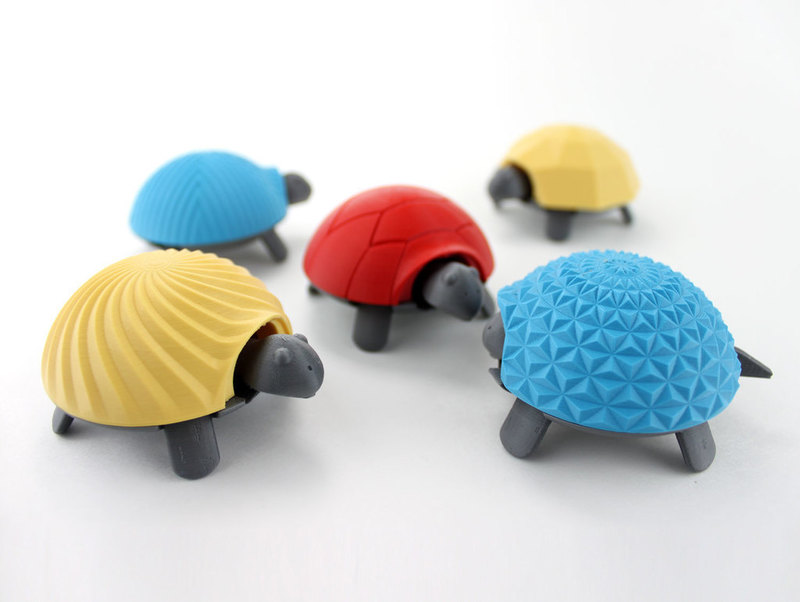

The model assembles with the printed H-Clips and needs no glue. The parts print without the need for supports. I had some fun designing the various shell patterns that can be printed. I can upload a blank shell file if anyone is interested in designing their own shell. If you are interested in my design process and latest 3d printing experiments, check out my website and my Twitter.
1fQi4dO1prnjXr39rZPYfA+DRmnLvrtjF/Kk7N7JbSMn75r5PkDlyWWg8HoGum7l2 YoVxy1t9e2q76JUZKMYHA====
Assembly
refer to the video to see the assembly process.
Updates Here is a list of updates since posting:
-bridge added to connect parts of the bottom piece to prevent print failure
-all stls have been adjusted to the proper print orientation
Loading prints...
Squishy Turtle
Creative Commons Attribution-NonCommercial-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.
Licensed under CC BY-NC-SA
