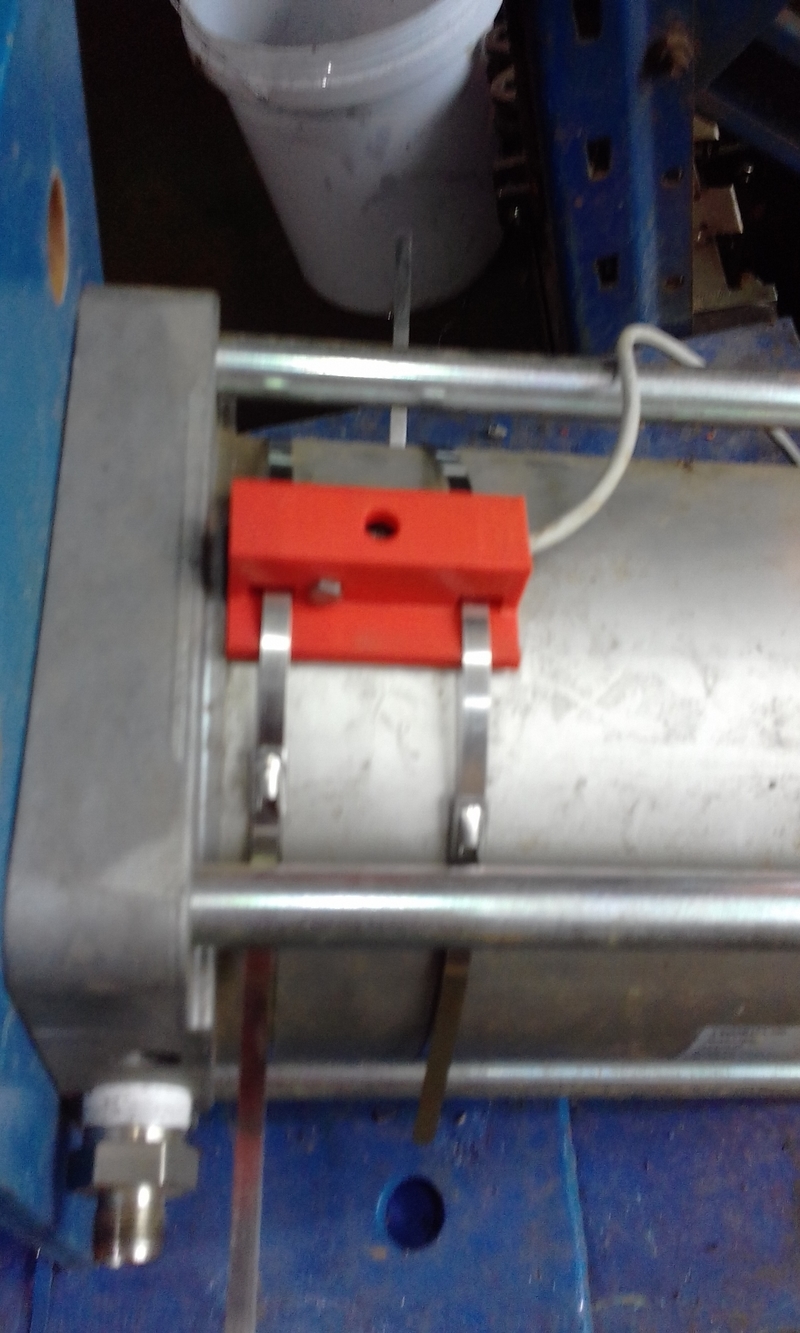

Dart valve actuator limit switch brackets kept corroding. We sourced some alternative reed switches that didn't come with mounting brackets. This is the second design that uses stainless cable ties to strap the switch to the actuator. Also has a viewing hole to see the indication led.
Designed in Tinkercad.
Loading prints...
Actuator position switch bracket
