Parabolic Relector for six (6) SMD LED strip
Free

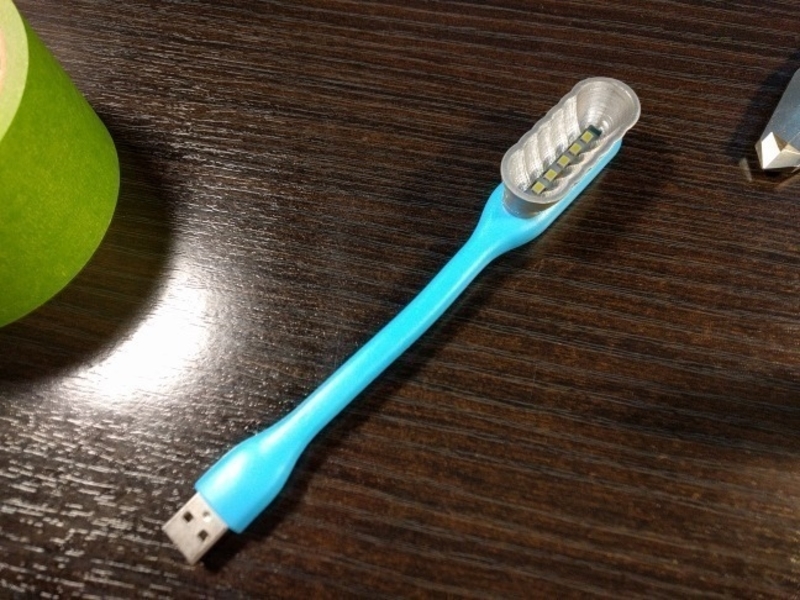

Summary I made this part to see if I could make a cheap flexible USB-powered LED (got mine at Dollar Tree) light have better throw. I was thinking maybe it could be used to make an inexpensive headlamp or work light. It snaps right into place, but the positioning of LED board isn't exact so they're not really at the focus of the parabola. My reflector print is pretty coarse, though, and at that size, I'm not sure how much it matters. Print Settings Printer Brand: Printrbot Printer: Printrbot Simple Metal Rafts: No Supports: No Resolution: 0.2 mm Infill: 100% Notes: Printing at 0.1 or 0.05 mm layer height would definitely yield a more accurate parabolic surface. Additional Print Settings: Filament: Hatchbox Gold PLA Hotend: 210 C Bed: 70 C Speed: 45 mm/s Fan: yes Shells/perimeters: 3 Top/bottom layers: 3 Nozzle diameter: 0.3 mm Post-Printing Painted reflector surface with chrome spray paint to increase reflection and opacity (light leak through plastic part).
