Airbrush Cleanning Pot
Free

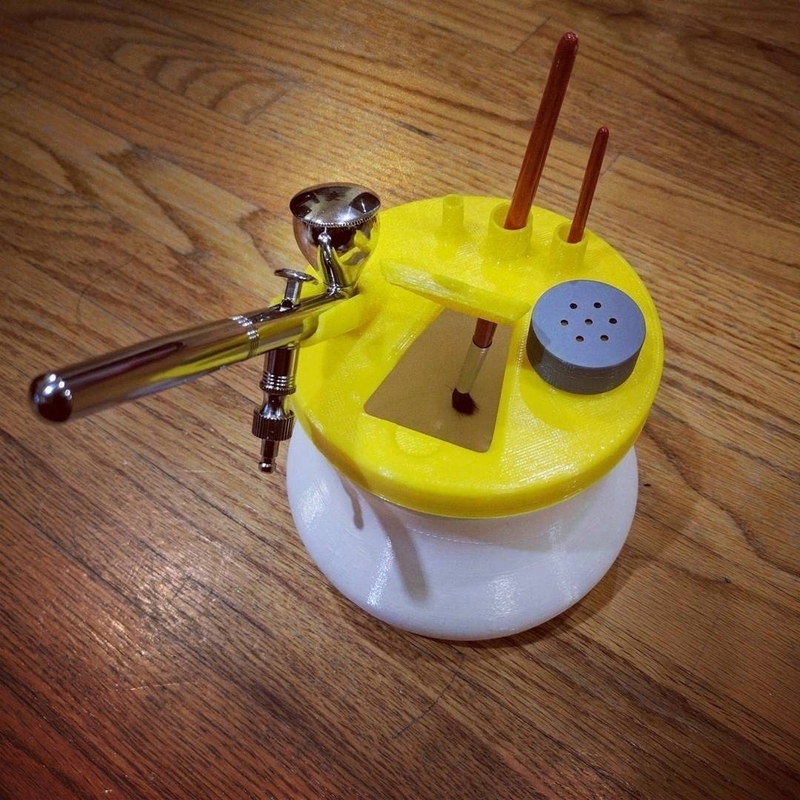

This accessory serves as a airbrush stand when it's not in-use. When adding water to the pot, it's very convenient to wash/flush out the remaining paint when you need to change to different paint color. This should fit any airbrush with diameter less than 13mm.

This design consists of a small removable channel which guides the pressurized mist from the airbrush when flushing straight to the filter. It also has a drafted flooring which allows the liquid to drain straight down to your pot.

Make sure to use support when printing the lid. When printing the pot, be careful with your extra restart distance/coasting since these settings cause leakage. If you still have leakage, you can spray the pot with flexible rubber sealant.

Loading comments...

Loading prints...

Airbrush Cleanning Pot

likes
0 collections
Creative Commons Public Domain

The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.

CC0 Licensed under CC0
Files Included

5 downloadable files:

View 3D
exhaust-tube.stl
STL Model
470.1 KB
File size
View 3D
filter-cap.stl
STL Model
981.6 KB
File size
View 3D
lid.stl
STL Model
4.0 MB
File size
View 3D
cup.stl
STL Model
6.6 MB
File size
View 3D
exhaust-chamber.stl
STL Model
1.0 MB
File size
