Cover Multi-Pack: SimpleSumo Expansions
Free

(THIS POST IS AN ACCESSORY FOR A PRODUCT COMING SOON!)

Official expansion package for the SimpleSumo Robots, as seen on Engineerdog.com & Instructables.com.

This pack includes all the different wheel related expansions.

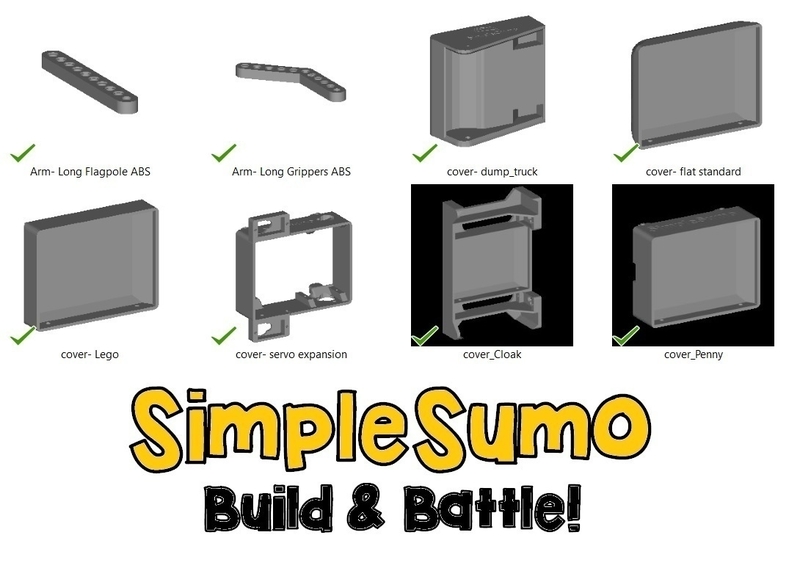

Parts included :

  • Cover -Flat (STANDARD) - This part was already free, included here for completeness.
  • Cover- Lego compatible - Allows you to make the robot compatible with Legos.
  • Cover- Penny mass holding - Allows you to add weight to the sumo via pennies on top.
  • Cover- Servo Expansion - Allows you to mount SG90 servos in multiple positions.
  • Cover- Dump Truck -  Allows you to turn the robot into a dumping truck with the aid of 2 SG90 servos.
  • Cover- Cloak - Allows you to start the robot on its side and mount foam blocks to deter detection.
  • Cover- Easy to Print - An easier to print cover.
  • Arm- Long grippers (for 'cover-Servo Expansion') - Used to add large grippers to the front of the robot.
  • Arm- Flagpole - Used for attaching a distraction flag or for flipping the robot over from the side position.

Recommended Print Settings:

  • All cover parts to be ABS: 4  perimeters all sides top & bottom,  .3mm layers,  20% infill. No supports needed. My brand of choice is eSun ABS. (I do not recommend using PLA for this application.)
  • Arms can be ABS or Flex material. For Flex Parts use 100% Infill, .3mm layers. I recommend eSun eLastic material.

Loading comments...

Loading prints...

Cover Multi-Pack: SimpleSumo Expansions

likes
2 collections
Creative Commons Attribution-NoDerivatives

You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.

CC BY-ND Licensed under CC BY-ND
Files Included

8 downloadable files:

View 3D
cover-_flat_standard.stl
STL Model
378.7 KB
File size
View 3D
cover-_Lego.stl
STL Model
2.2 MB
File size
View 3D
cover-_servo_expansion.stl
STL Model
2.8 MB
File size
View 3D
cover_Cloak.stl
STL Model
1.7 MB
File size
View 3D
cover_Penny.stl
STL Model
2.7 MB
File size
View 3D
cover-_dump_truck.stl
STL Model
1.4 MB
File size
View 3D
Arm-_Long_Flagpole_ABS.stl
STL Model
2.1 MB
File size
View 3D
Arm-_Long_Grippers_ABS.stl
STL Model
2.3 MB
File size
