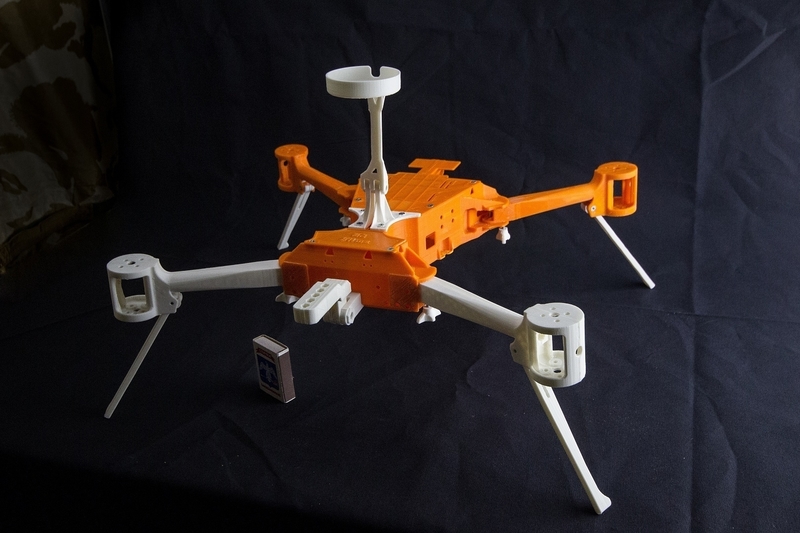

I designed it in SolidWorks under the props 10 inches. Frame is foldable, very convenient for transportation.
Specifications: - Distance between the axes diagonally - 450 mm - The weight of the frame is 355 g. - Erection of motor axes 5 degrees - The size of the motor mounting - 16x19 mm
Provided internal wiring in the folding beams, foldable gps antenna mount and folding legs. In a closed frame case, any flight controller can be installed. There is an integrated vibration isolation. 3d model mold for casting of silicone in the set.
Also you will need: - M3 screws - M3 nuts - Some of nuts are installed in the frame by heating (use soldering tool or gas lighter) - Some plastic parts must be glued together with super-glue (cyanocrylate, for example) - Make silicone damper, like on these VIDEO:
Assembly diagram in the "assembly copter.stl" file. The number of items for printing is indicated in stl name. Enjoy!
Printer: 200x200 table
Rafts: Yes
Supports: Yes
Infill: 25%
