Catia model of all metric screw threads according to ISO 724.
- With parameters.
- With thread run-out.
Configurable inputs:
- d=D = Nominal size
- P = Pitch
- L1 = Gross length
- Clearence
Outputs:

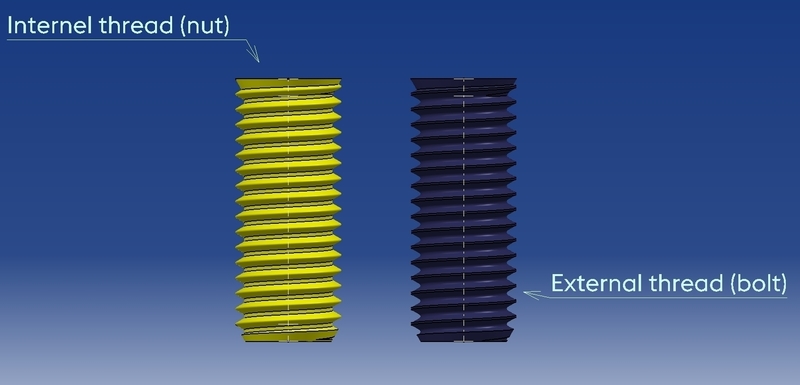

- Internel thread (nut)
- External thread (bolt)
- Nett length (Gross - Run-out)
Request me for the CATPart file (I can't drop it here). Or ask me for the desired .stl file.
Also available BSPP ISO 228 & BSPT ISO 7-1 (G/R/Rp/Rc).
