Tinkeriffic BB Bearing 58mm Spool Spindle
Free

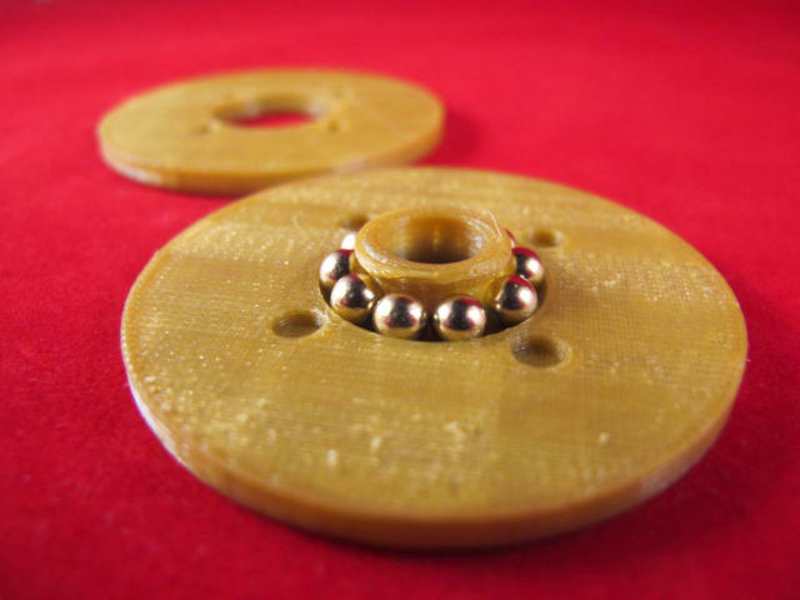

Crikey. It's another Tinkeriffic bearing spool spindle. My Faire Play Kickstarter was funded to the tune of 120%, and now I'm printing backer rewards. I got myself a new roll of gold filament and of course it doesn't fit any of the bearings I've made so far, because that would make things easy and apparently Hera's mad at me for only making an Athena Makeover Kit. I'm cursed. A wiser man would take the time to create a Tinkeriffic bearing in Thingiverse's customizer, and then adjust bearings parametrically as needed. But Lao Zheng ain't got no time to be learnin' no Customizer, foo! So I banged this out in Maya in like eight seconds. Enjoy. This spool spindle is designed to fit a 58 mm spool, like this one I got from BuMat. This three-part solution (thirteen parts, if one counts the 4.5mm BB's) is designed to use a Tinkertoy rod as an axle and is a much, much smoother ride for your filament spools. I found inserting BB's into the original 608 bearing to be frustrating so I split the bearing in two and left it to the end user to super glue the parts together. The walls of the inner spool are by necessity quite thin; I recommend multiple shells or high infill for that part.

Loading comments...

Loading prints...

Tinkeriffic BB Bearing 58mm Spool Spindle

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

3 downloadable files:

58mm_bearing_inside.stl
STL Model
~1-5 MB
Est. size
core.stl
STL Model
~1-5 MB
Est. size
58mm_bearing_outside.stl
STL Model
~1-5 MB
Est. size
Free download - login required
Downloaded: 57 times
