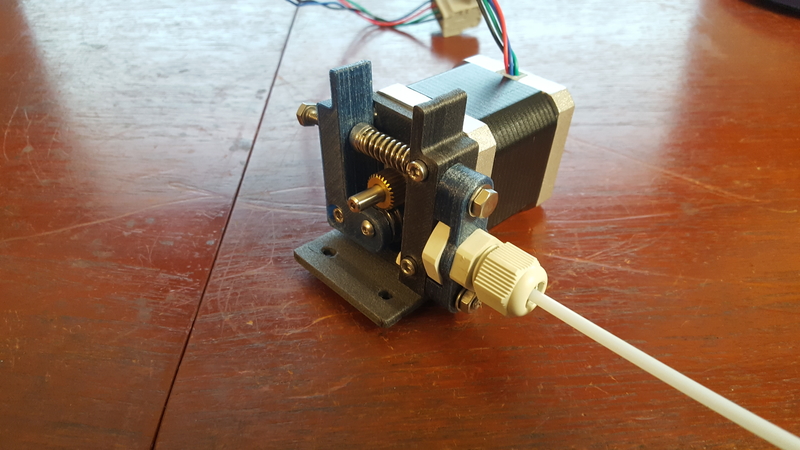

Simple Direct Drive Extruder
For the “extruder lever.STL it’s recommended to use support material.
Printed in PET-G Carbon and Shifting Blue, 0.2 mm Resolution
*******************************************************************************************************************************
Teflon tube holder upgrade 20-Feb-2018
This upgrade is about replacing the gland nut for tube holder clips. See pictures
Experimenting with these clips I can to the understanding that the diameter of the hole where the clip is placed in is very important. Because not all Teflon tubes are the same size the diameter of this hole can be different. The Teflon tubing I have is between 3 – 4 mm. So for me it works best that to bore out the hole with a 6.5mm. But I recommend to begin with 6mm. If that is too tight, bore 6.5mm and so on.
Loading prints...
Direct Drive Extruder
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
