Venturi Fan
Free

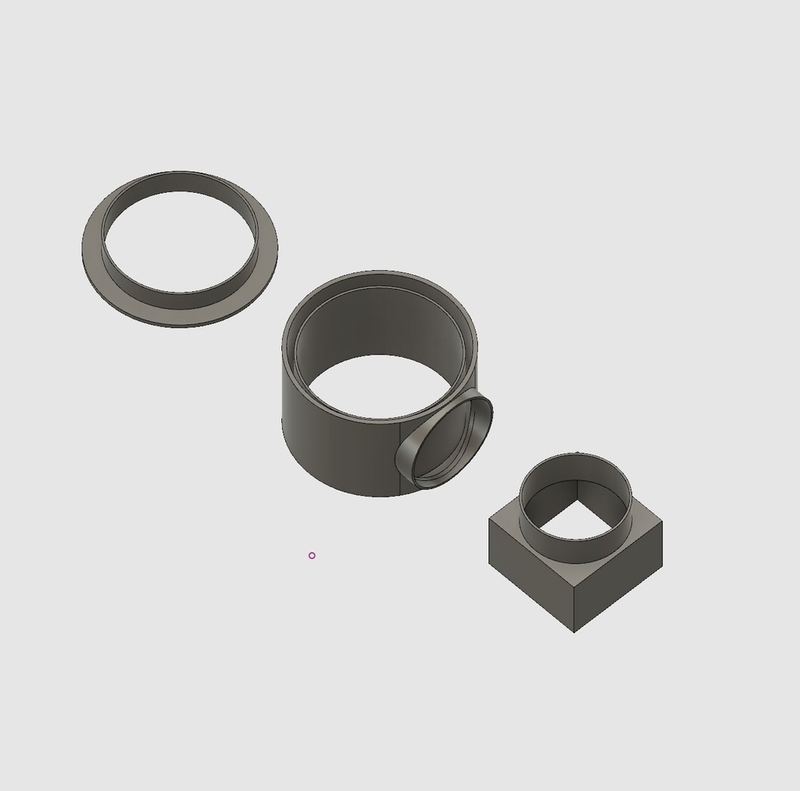

Summary My attempt at making a Venturi fan that uses a standard 120mm PC fan of any kind (within reason). I've not built or printed this yet as I'm still working on the model so things may change at any point. How I Designed This Designed in Fusion 360 with some digital calipers for measuring reference points on a pc fan.
