Bar-End Plugs
Free

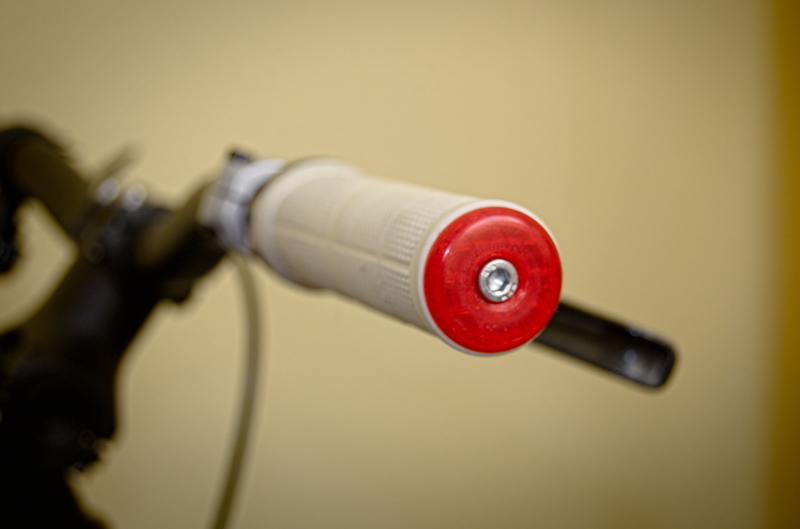

Quality plugs with effective grip. You will never lose your plugs again and will protect your bar in case of a crash. With this specific design the plug is very strong and if you over-tighten it, you will not destroy the plug but only the wedge (in contrast with the usual wedge design). There are two sizes: one with large (32mm)outer diameter if you are using lock-on grips (the cap will also protect the rings) and one with small (28mm) outer diameter for simple grips. Except for the printed parts you will need a pair of M5 bolts (25mm).

Update 19 May 2022

The  the expanding part (aka wedge) has been redesigned in two parts, so it can be printed easier. No supports needed for the plug. There is a sacrificial layer. Also anti-rotation tabs have been added. It is more durable and easier to install.

Loading comments...

Loading prints...

Bar-End Plugs

likes
0 collections
Creative Commons Attribution-NoDerivatives

You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.

CC BY-ND Licensed under CC BY-ND
Files Included

4 downloadable files:

View 3D
cone.stl
STL Model
2.0 MB
File size
View 3D
expand_part_14mm.stl
STL Model
165.8 KB
File size
View 3D
Plug_28mm_v2.stl
STL Model
974.9 KB
File size
View 3D
Plug_32mm_v2.stl
STL Model
801.4 KB
File size
