Summary
Not a remix but inspired by http://www.thingiverse.com/thing:1008948, this is an original design created in Onshape.

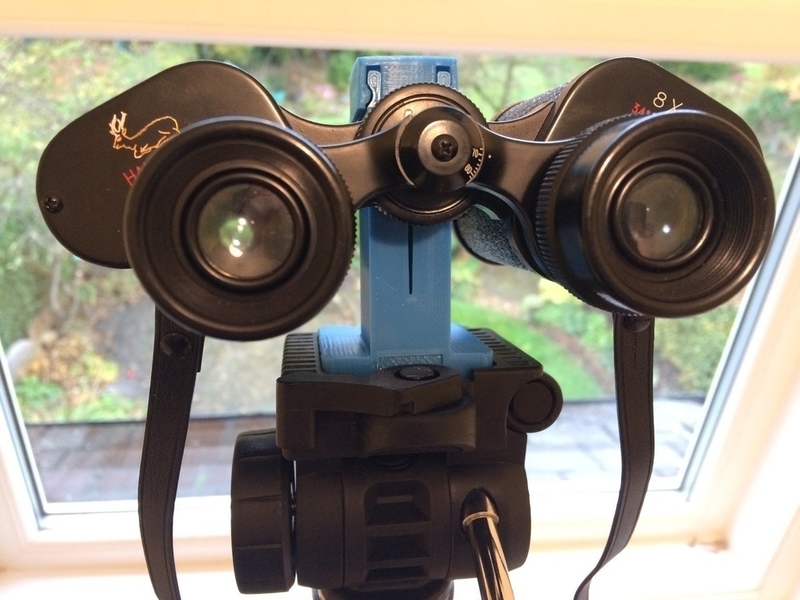

The binocular clamp consists of three interlocking parts. The main post was designed to fit in the QS03 quick-release socket for a Vanguard tripod.The 8 x 40 binoculars rest in the cradle on top of the post. The upper block is then slid down onto the binoculars and finally the top lock is slid into place to lock the binoculars firmly in place.
Print Settings
Printer:
E3D BigBox Rafts:
No Supports:
Yes Resolution:
0.15 mm Infill:
30%
