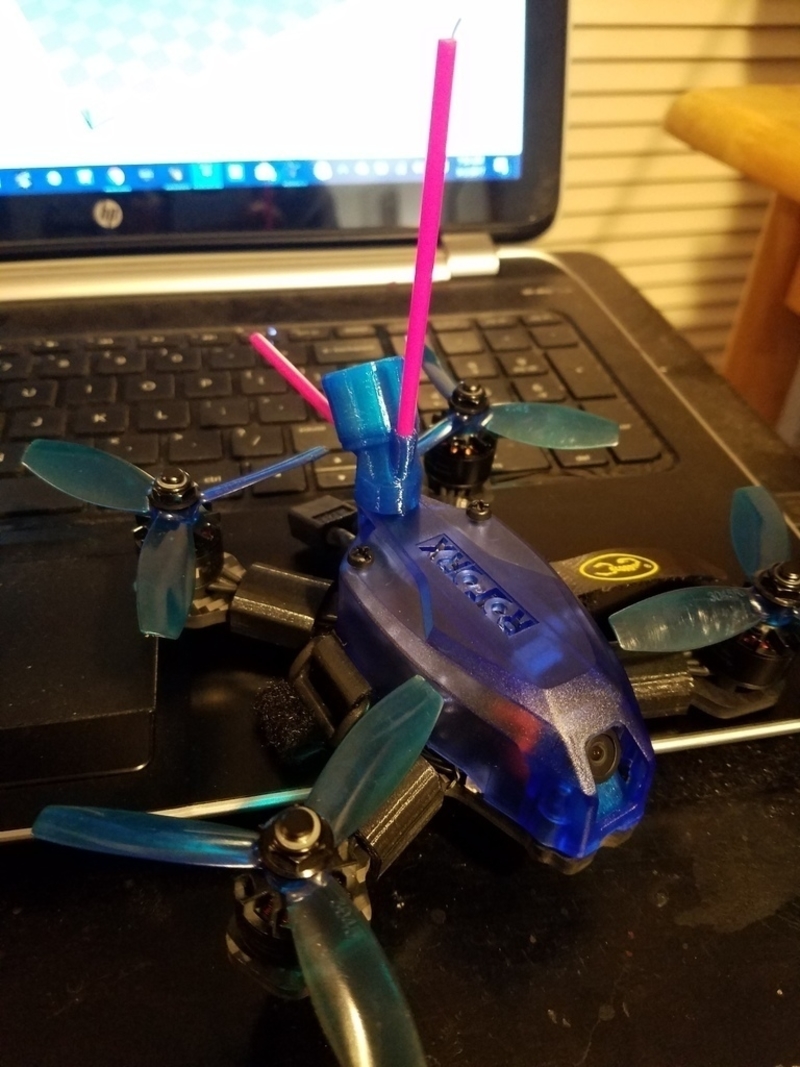

Summary UPDATE: Added a version to use with a crossfire micro rx. Make sure you run the RX antennas before you install the axii u.fl antenna. UPDATE: 8/13/17 Revised the mount to accommodate for prop flex and clearance. Designed this mount to use the light weight Axii u.fl circular antenna. Its set at 35 degrees to maximize polarization. Printed in TPU

Loading comments...

Loading prints...

Rotox Atom V2/3 Axii U.fl Mount

1 like

0 collections

Tags:

3D-Design

by dblnaknak

Download Files

Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

Licensed under CC BY

Files Included

3 downloadable files:

View 3D

Atom_Axii_mount.stl

STL Model

334.2 KB

File size

View 3D

Atom_Axii_V2.stl

STL Model

484.4 KB

File size

View 3D

Atom_Axii_u.fl_crossfire_antenna.stl

STL Model

605.4 KB

File size
