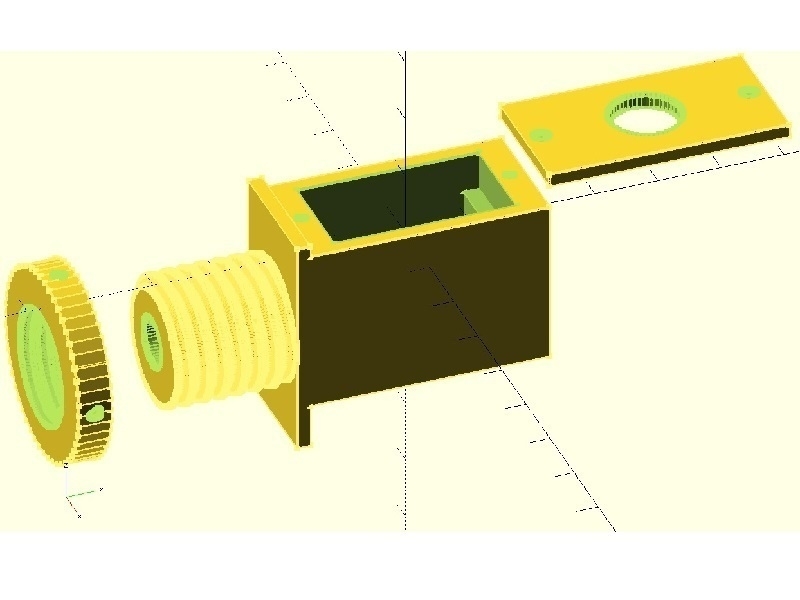

Anet A8 mod to create an off switch when the heater plate moves to the rear when the print is done.. Mount in the 20 mm hole in the back of the printer base. File designed around the Radio Shack 275-0651 Flat lever Heavy Duty SPDT Switch. Put it in-line with your hot lead to the power supply. Rotate the assembly to the side when preparing the printer and starting a print. Once the print has started, you can rotate to the vertical position and the printer will shut itself off when the print is completed. Make sure to move Y to zero in your end g-code.
Loading prints...
Anet A6 / A8 shutdown switch
