A fan mount to redirected the air for better print cooling on the Leapfrog Creatr.
I had problems with melting prints caused by trapped hot air under the nozzle.
This design was a major improvement on the prints that came out.
It cools the print but also the incoming filament (where the fans ware originally mounted for).

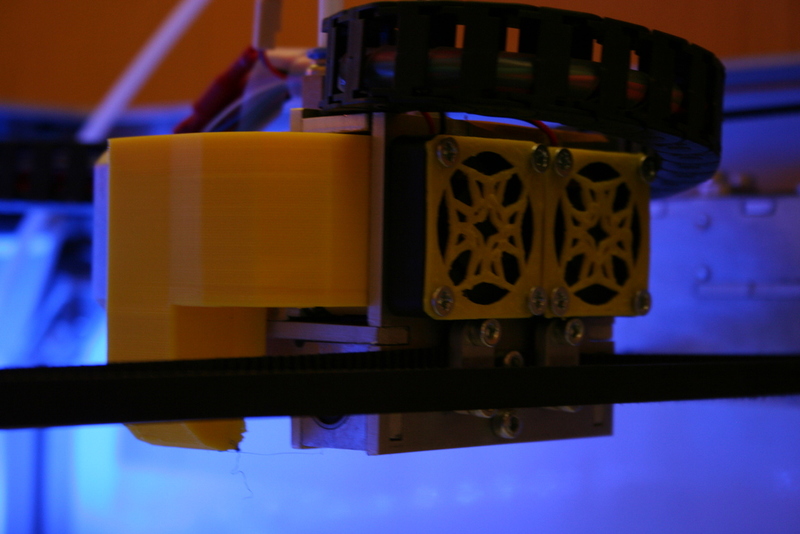

The 2 air-blocks slide in ware the fans usually are mounted. The fans are than mounted on the outside of the metal casing with wood screws, mounting the air-blocks with the same screws together.
NOTE: The print volume in width decreases by +/- 40 mm
