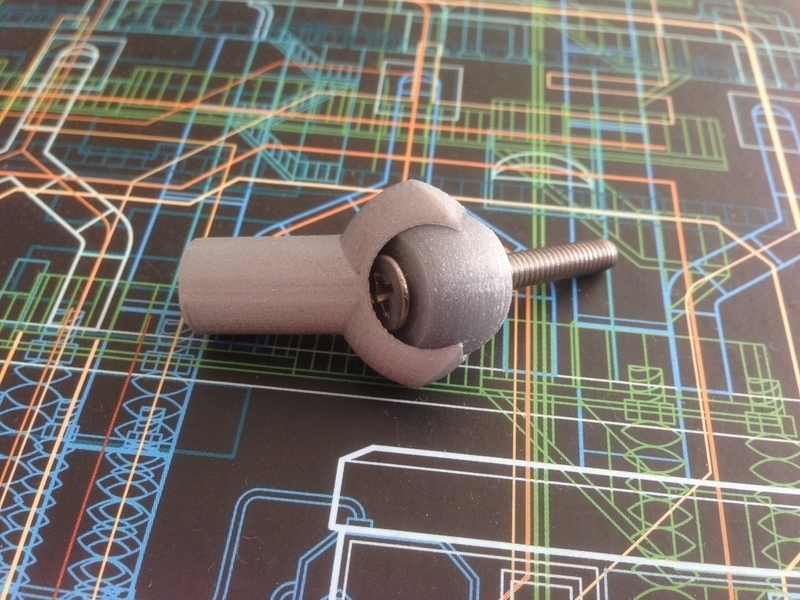

Improved Rod End Bearing
Free

Summary wow this one turned out nice :D update: increased the counterbore to 100%

Instructions I had to sink it 0.1mm in the print bed, so that cura started to slice the first layer correctly. If anybody knows why, please comment. - print turned out nice with 0.06 layer height and 0.1mm spacing for the ball.
