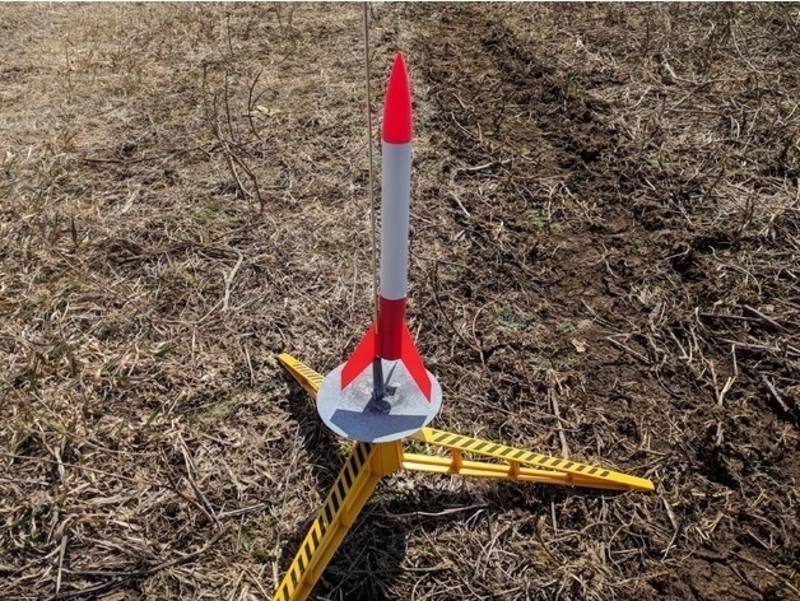

Alpha 3D Model Rocket
Free

This is my tribute to a classic Estes kit. The Estes Alpha III was one of the first rocket kits I built as a kid. While this isn't an exact copy of that kit, it is quite similar appearance.

You can either print just the nose cone and fin canister and use standard BT-50 body tube (6" long) or you can print the body tube model using 'vase mode' (single wall spiral w/ no top or bottom).

You can use either ABS or PETG for printing. I used ESun PETG translucent orange for my 'full print' version. For ABS I've found the FoxSmart ABS to be a good and cost effective filament. The version built with a standard body tube has red FoxSmart ABS for nose cone and fin canister. The 'thick' version of the fin canister has slightly thicker fins for more durability.

Try an A8-3 for first flight, B6-4 for second flight.

Launch video:

Loading comments...

Loading prints...

Alpha 3D Model Rocket

likes
0 collections
Creative Commons Attribution-NonCommercial-NoDerivatives

You can download and share as long as you credit the creator, but you cannot change the material or use it for commercial purposes.

CC BY-NC-ND Licensed under CC BY-NC-ND
Files Included

5 downloadable files:

View 3D
BT50_Alpha_3D_finCan_thick_fins.stl
STL Model
300.3 KB
File size
View 3D
BT50_Alpha_3D_finCan.stl
STL Model
161.2 KB
File size
View 3D
BT50_Alpha_3D_nose_cone.stl
STL Model
1.7 MB
File size
View 3D
BT50_Alpha_3D_bodyTube_15cm.stl
STL Model
85.1 KB
File size
View 3D
BT50_bodyTube_15cm_spiral_vase_mode.stl
STL Model
12.4 KB
File size
Free download - login required
Downloaded: 93 times
