Cardinal Wallet
Free

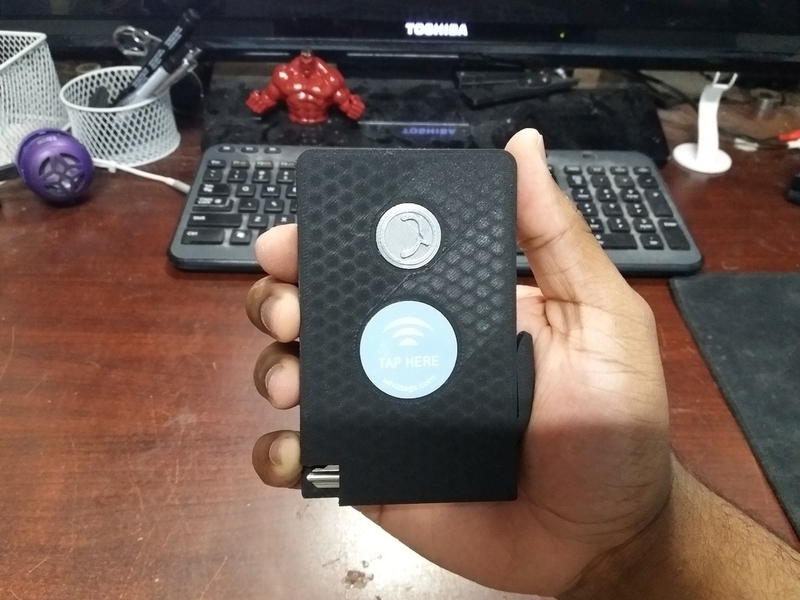

Summary https://youtu.be/phRK3Fs0ypw This is one of the wallets that I sell. It's the Cardinal Wallet and i decided to share it. Because its a commercial product, I wont be able to remove the logo slot, however you can put anything you want there (the silver round thing) and i don't mind if you choose to sell it as well. It looks a little different from the one in the video and pictures because i edited it slightly since but the general design is the same. For the key, you'll need a small magnet (take a hammer and chisel 'carefully' to a ceramic magnet in necessary) and glue it into the main body. Also, you'll need to attach something metallic to the back of the key holster and obviously you'll have to file down your key. I used 2 small screws but anything metallic will do, as well as gluing it if necessary. It prints in 3 main parts (aside from the lever and key holster) so you will need to glue it. I recommend epoxy for the cover and contact cement (or epoxy) for the money clip, but really any adhesive of your choice. You can use a small washer or piece of rubber at the hinge if the arm wobbles but really it shouldnt ( nail works really well as a fulcrum for the hinge). What's important to prevent the cards from falling out is to get a really good quality thick rubber band and trim it to size as in the photo to allow it to work well. when the main body prints (without support) make sure the two 'arms' where the rubber bands will go are wobbling and flexing properly before assembling. Print Settings Printer Brand: Printrbot Printer: Simple Black Rafts: Doesn't Matter Supports: Yes Infill: Higher is better Notes: I print in pla. The main body, lever arm and cover should be printed laying flat so that no supports are needed (dont print with supports). The key holster should be oriented so the slot is facing up so no support will be needed either. the money clip should be printed separately, possibly with a raft because it needs to print standing up vertically in order to ensure that the clip has flexibility and wont break.

Loading comments...

Loading prints...

Cardinal Wallet

like
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

6 downloadable files:

View 3D
cardinal_wallet_lever_arm.stl
STL Model
37.8 KB
File size
View 3D
cardinal_wallet_main_body.stl
STL Model
20.7 KB
File size
View 3D
cardinal_wallet_money_clip.stl
STL Model
118.1 KB
File size
View 3D
cardinal_wallet_key_holster.stl
STL Model
21.8 KB
File size
View 3D
cardinal_wallet_cover.stl
STL Model
100.7 KB
File size
View 3D
Logo_Coin.stl
STL Model
260.0 KB
File size
