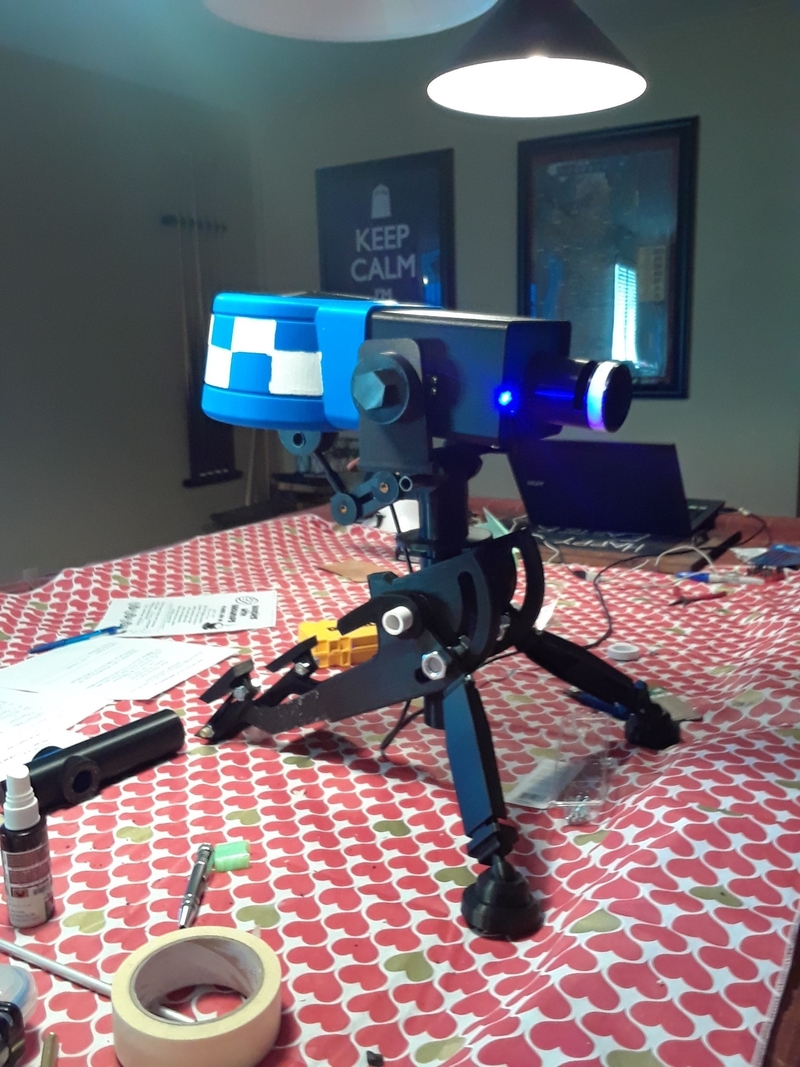

I love that little gun, so much so now I have made my own. This is still a WIP, mostly I feel it has many design flaws like, not being able to look up when the piston like thing in the back is attached, and the front legs are very fragile. The model now has the beacon light, should be easily printable w/o supports, but I do not have a transparent blue filament.
The gun is divided into three parts (stand, adapter, head) which I can not upload the folders to keep them separated. The stand stops at the planet gear, and the adopter stops at the caster pin. I use the xN to say how many copies are needed if it lacks an xN you only need one.
EDIT- I have uploaded an experimental new style of double bars (have not printed it myself), it is a bit lacking in appearance compared to the old one but should be far more flexible. I also added the holes needed for the servo in Neck file
It was designed with being a fully autonomous sentry gun in mind, servo placement has already been worked out and holes for routing wires have be put in. Note: connecting the neck to cross bar requires a servo or the ServoStandIn on one side, I also forgot to put holes in the neck for the screws to hold the servo, but a there is a quick fix with a drill. I will update the design with these holes, as this servo/stand in is vital to hold the neck to adapter . Where the Leg2 meets Leg1, the loops on Leg 2 should have a very high infill percentage, due to the crushing force of the screw and nut to keep the two parts stationary, maybe around 80%.
If you have any questions feel free to ask I am probably over looking and glazing over many details, that seem obvious to me. Most parts do not need support but some do, I would strongly recommend NOT using support on the Shell file.
You will still need
2x 15mm threaded rods 5cm long and 4x 15mm nuts for the legs
2x 15mm threaded rods 11cm long put inside the rod holder and in-turn put in the very front of the sentry, this is a very important counter wieght
1x 1/2 inch/12.7mm pvc pipe 16cm long for the center of the tee
2x 10mm threaded rod 3cm long and one 12cm and 6x 10mm nuts for the end of the back leg and the deploy-able back feet
2x 9mm smooth pipe 25mm long for the piston like thing under the shell
1x 13mm smooth pipe 10 cm long for adapter under the crossbar
1x 7.15mm smooth pipe 5cm long for pan servo used to connect stand to adopter
2x 4m screws 32mm long, can not be shorter, for connecting leg1 to leg2 parts
4x 4m Screws to hold face plate and shell to neck additional 2x 4m nuts to hold the shell to neck
If you want to to act like a sentry, you will need an additional
2x MG996R 55g servos, one will need to have its screw arms cut off to fit in the pan house
I use Project Sentry Gun for everything to control it, it is an involving task
