Conical exhaust pipe 44-31-h135 - 1 1/2 thread
Free
Conical exhaust pipe 44-31-h135 - 1 1/2 thread - Thumbnail 1 Conical exhaust pipe 44-31-h135 - 1 1/2 thread - Thumbnail 2 Conical exhaust pipe 44-31-h135 - 1 1/2 thread - Thumbnail 3 Conical exhaust pipe 44-31-h135 - 1 1/2 thread - Thumbnail 4

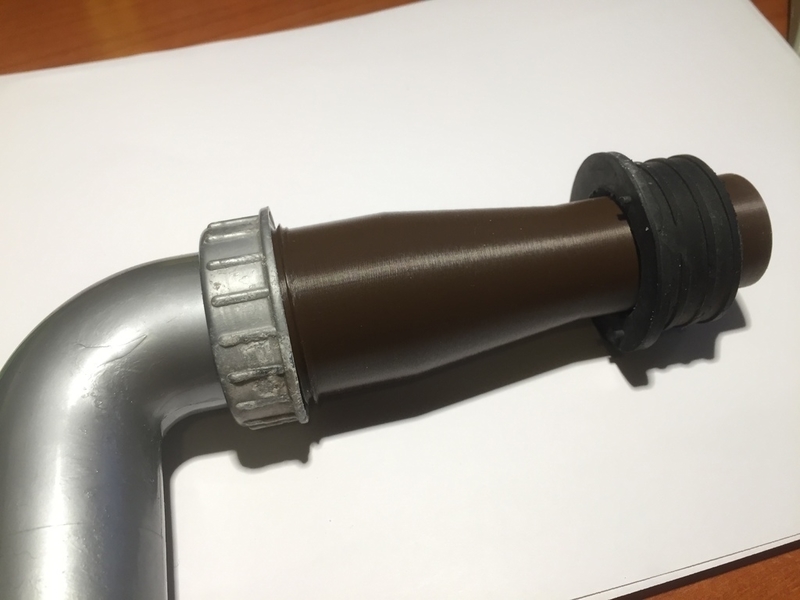

Summary Final sink drain, diameter 44xL40mm + conical L45mm + diameter 31xL50. 1 1/2 thread Suitable for particular piping situations. Nut 1 1/2: https://www.thingiverse.com/thing:2855169

Print Settings Printer Brand: Zortrax Printer: Zortrax M200 Rafts: Yes Supports: No Resolution: 0.19-0,29 Infill: 90% Notes: Tolerances designed for ABS printing

Loading comments...

Loading prints...

Conical exhaust pipe 44-31-h135 - 1 1/2 thread

likes
0 collections
Tags:
_Stefano17_ by _Stefano17_
Download Files
Creative Commons Attribution-NoDerivatives

You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.

CC BY-ND Licensed under CC BY-ND
Files Included

1 downloadable file:

View 3D
Tubo_Conico_44-31-h135.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 49 times
