Toyota Highlander 2018 center console tray
$1.00

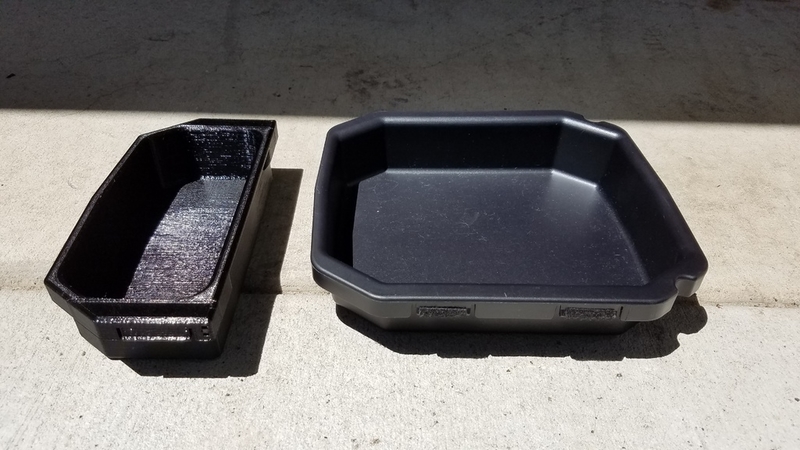

Summary The tray inside the center console of our 2018 Toyota Highlander was a bit massive and prevented easy access to items underneath. No idea if this works on other year models, but assembled it is 217mm wide. Can work well as a single tray or print two and slide apart. My printer wasn't large enough to do it all in one go so spit the model a bit (200mmx200mm print bed). Print out 4 of the pins. Secure each wing piece with two pins, diagonal first and after sliding into place, secure with a pin straight in. The original tray has sticky felt pads on the sides to lessen vibration. They peel off easily and can be reused as shown. I used PETG mainly because I didn't have any black ABS. Print Settings Printer: Monoprice Maker Select v2.1 Rafts: No Supports: No Resolution: .32 Infill: 40 Notes: Printed in petg (abs would be fine). PLA cannot take heat without deforming over time. Printer modded with all metal hotend which adds a bit to temp needed. Used 250 hotend, 75 bed, no fan. I wanted it to be strong so used 3 walls and 40% grid infill. Very pleased with the results.

Loading comments...

Loading prints...

Toyota Highlander 2018 center console tray

likes
1 collection
Payment system coming soon!
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

4 downloadable files:

tray.stl
STL Model
213.2 KB
File size
Right_wing.stl
STL Model
30.5 KB
File size
left_wing.stl
STL Model
30.5 KB
File size
slot_key.stl
STL Model
64.3 KB
File size
