GE Cafe Series French Door Refrigerator Replacement Part - WR02X
Free

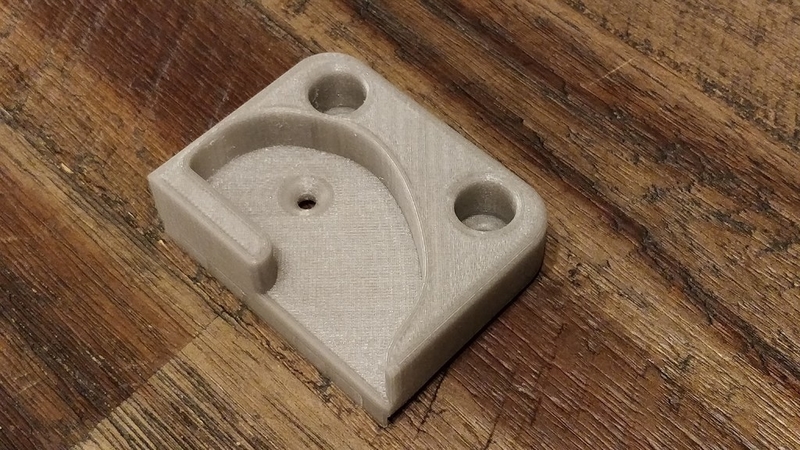

Summary Very specific replacement part, I have the "GE Café™ Series 28.6 Cu. Ft. French-Door Refrigerator" Model: CFE29TSDSS Over time the door engaging plastic piece at the top of the refrigerator was getting worn down and would not engage the door seal. I designed this replacement part to be 2mm longer than the original to solve my issue. Could come in handy for someone else. Details: Model: CFE29TSDSS Description: GE Café™ Series 28.6 Cu. Ft. French-Door Refrigerator Refrigerator Link: https://is.gd/bNqiX3 Official Replacement Part Link: https://is.gd/vkZqzl Print Settings Printer Brand: Prusa Printer: i3 MK2S Rafts: No Supports: Yes Resolution: 0.2 Infill: 40% Notes: Material: PLA Infill: 40% Infill Pattern: Grid Supports: Yes How I Designed This Fusion 360

Loading comments...

Loading prints...

GE Cafe Series French Door Refrigerator Replacement Part - WR02X

like
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

View 3D
WR02X13716.stl
STL Model
464.8 KB
File size
Free download - login required
Downloaded: 22 times
