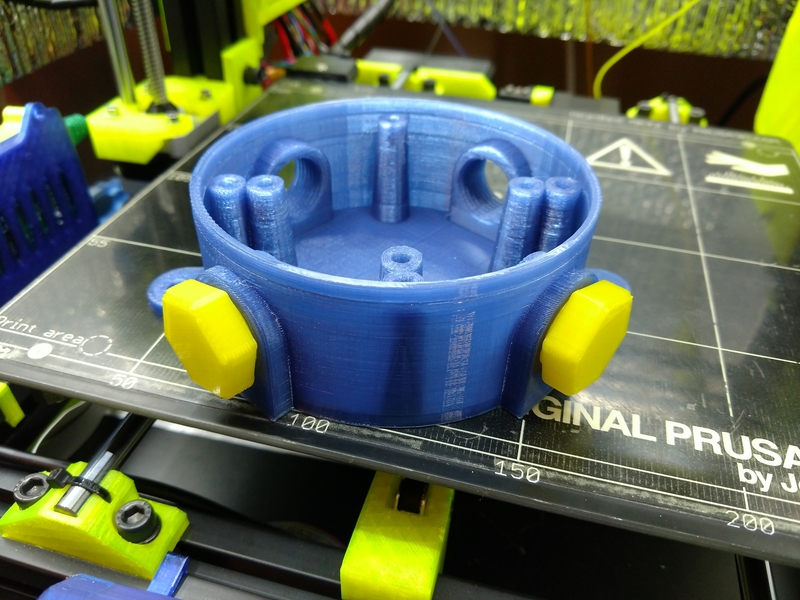

This is a threaded plug (cap) for electrical junction boxes. There are both 1/2-inch and 3/4-inch versions as well as versions that include a hex thumb screw for easy tightening/loosening (which I highly recommend--who wants to carry around a huge flat-head screwdriver just for plugs?).
Note: I highly recommend using some dielectric grease on the threads to ensure water can't get into your electrical box.
Remember: In order to comply with the National Electrical Code (NEC) you'll have to print this in a flame-retardant filament and protect it from UV rays somehow (either by using UV-stable filament or painting with a UV-protective coating).
Printing:
Print @0.2mm layer height with three perimeters and it should turn out fine. I used 15% infill but that doesn't really matter much (it's just a plug--it'll be fine).
Loading prints...
1/2 Inch and 3/4 Inch Threaded Electrical Junction Box Plugs
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
Files Included
4 downloadable files:
Downloaded: 104 times
