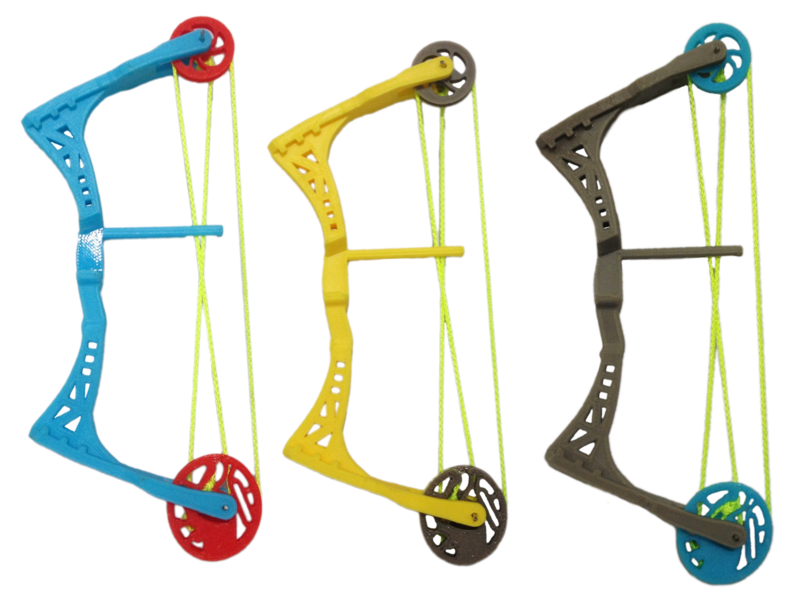

This mini compound bow is for educational purposes to help people learn the pulley mechanisms and get an overall feel. Definitely one of my favourite prints. The bow stands about 16cm tall and can shoot a good distance. I used builders string which is 'Braided Nylon' and some paper clips to hold the pulleys or you could use m1.6 bolt. This comes with an arrow but might be better making your own out of kebab sticks.
I have provided assembly instructions with pictures.
Print Settings: At least 20% Infill Layer Height: 0.1 to 0.15 Raft or No Raft Support only for Bow
Loading prints...
Mini Compound Bow and Arrow
Creative Commons Attribution-NonCommercial-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.
Licensed under CC BY-NC-SA
Files Included
6 downloadable files:
