I printed this in PLA 0.2mm resolution and 0.4mm nozzle. The roof.stl is printed with support material generated by Cura. After that I Super Glued the parts together. See the pictures to see how the parts will fit together. I first glued the “base” parts. Then the “roof” & “wedge” parts. I also glued the M4x45mm bolt in place already, because later on (when all parts are together) it will be very difficult to do this. As last step I glued the “roof” , “base” and all the white parts together.
To make this model you at least need:
1X M4x45mm bolt and nut
6X base.stl
6X entrance.stl
2X mount pin.stl
1X mount ring.stl
1X mount wedge.stl
2X mount.stl
6X pillar 2L.stl
6X pillar 2R.stl
6X pillar.stl
6X roof,stl
If you have any questions, feel free to ask :-)
Do you think I forgot something or made a mistake? Feel free to comment :-)
PS: the opening in the middle of the “base” is intensional. It's for letting the rain water out
Loading prints...

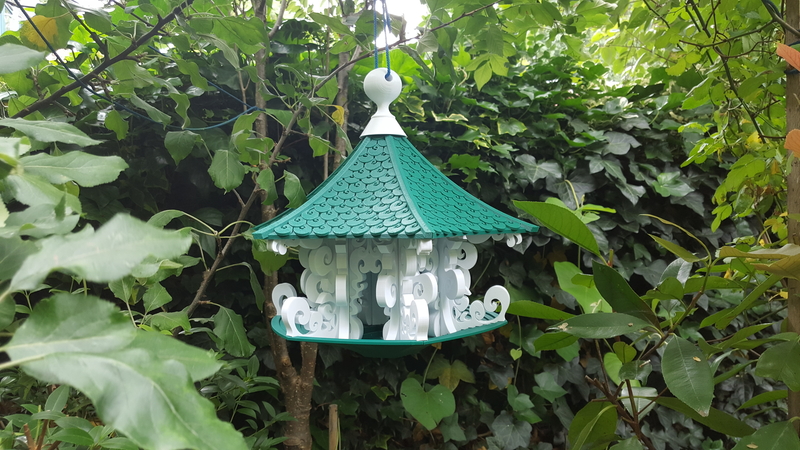

Flowing Bird Tempel
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
