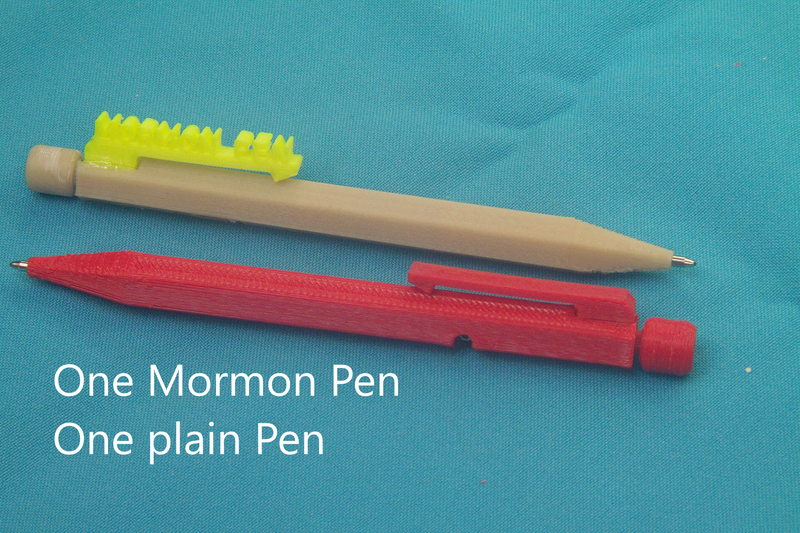

The pen parts print in about 30 minutes. All 4 parts are in one STL file. Also included is each part STL file and the handle for a 1.5mm Allen wrench. There are two Clips, one plain and one with MORMON PEN text. (Yes I am a Mormon, see my Temple models).
I print these using PLA with the following settings:
0.40 nozzle, 0.25mm layer height, 60mm/sec speed, no support, no raft. A built in support is removed with a chisel.
Other Parts: .024" (0.57mm) dia welding wire for making spring (10 turns, 3mm ID). 3mm x 6mm set screw. TecUnite 2.75" pen refill (Amazon). 3400mm of 1.75 filament. Total cash outlay about $0.70 per pen.
Tools: Allen wrench 1.5mm. 3mm steel rod for making spring. Wire cutter. Hammer. Chisel. Tweezers. Sand paper. Drill motor, 2.5mm drill bit (70+mm long).
I have made 60 pens as of now and have 40 more in the works. Mostly gifts for kids, grand kids, great grand kids and church folks.
Loading prints...
BALL POINT RETRACTABLE PEN
Creative Commons Attribution-NonCommercial-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.
Licensed under CC BY-NC-SA
Files Included
9 downloadable files:
