Truggy Tire Mold
Free

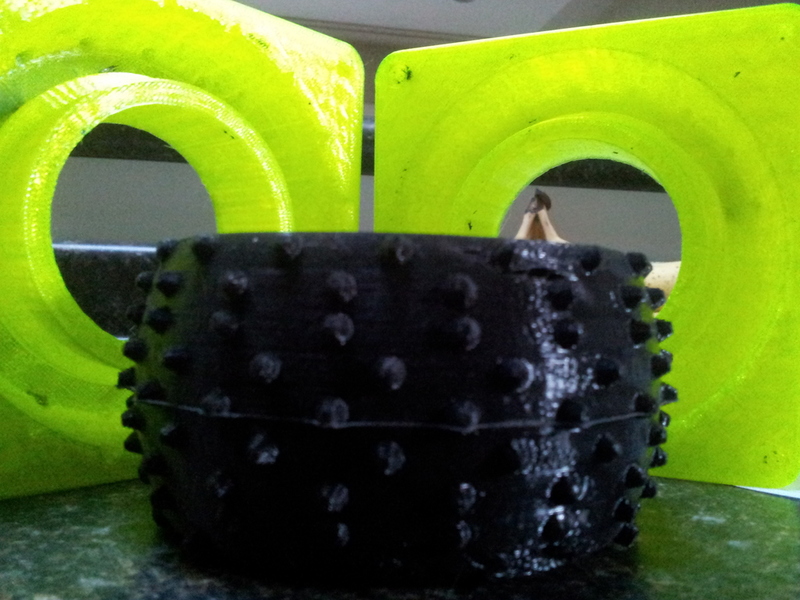

Flexible filament is expensive and doesn't work in every printer. I wanted very flexible tires and I wanted to be able to cast them. I give you the truggy tire mold. I made my tires from Oogoo you can find the recipe here: http://www.instructables.com/id/How-To-Make-Your-Own-Sugru-Substitute/ Oogoo sets in pretty fast (I de-molded in half an hour) so you can print one mold and make as many tires as you want. You can also make it any color you want by adding a bit of oil based paint, I went with traditional black for my tires but I could have just as easily made them red. WARNING you need to mix up a fair amount of oogoo to make this mold (like over a half a tube of caulking. Oogoo is stiff enough that when mixing this much it will break a Popsicle stick sop use a metal stir stick and work fast. Also you might want to try printing and casting some of my smaller molds first as you have to work pretty fast to get a good casting (my first had some missing bits around the edges you can see in some of my pictures. My second casting went much smoother as I knew how much oogoo I needed to prepare.

Loading comments...

Loading prints...

Truggy Tire Mold

likes
10 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

3 downloadable files:

View 3D
OpenRC_Truggy_Tire_mold_bottom.stl
STL Model
1.8 MB
File size
View 3D
OpenRC_Truggy_Tire_mold_top.stl
STL Model
1.8 MB
File size
View 3D
OpenRC_Truggy_Tire_mold.stl
STL Model
3.5 MB
File size
Free download - login required
Downloaded: 151 times
