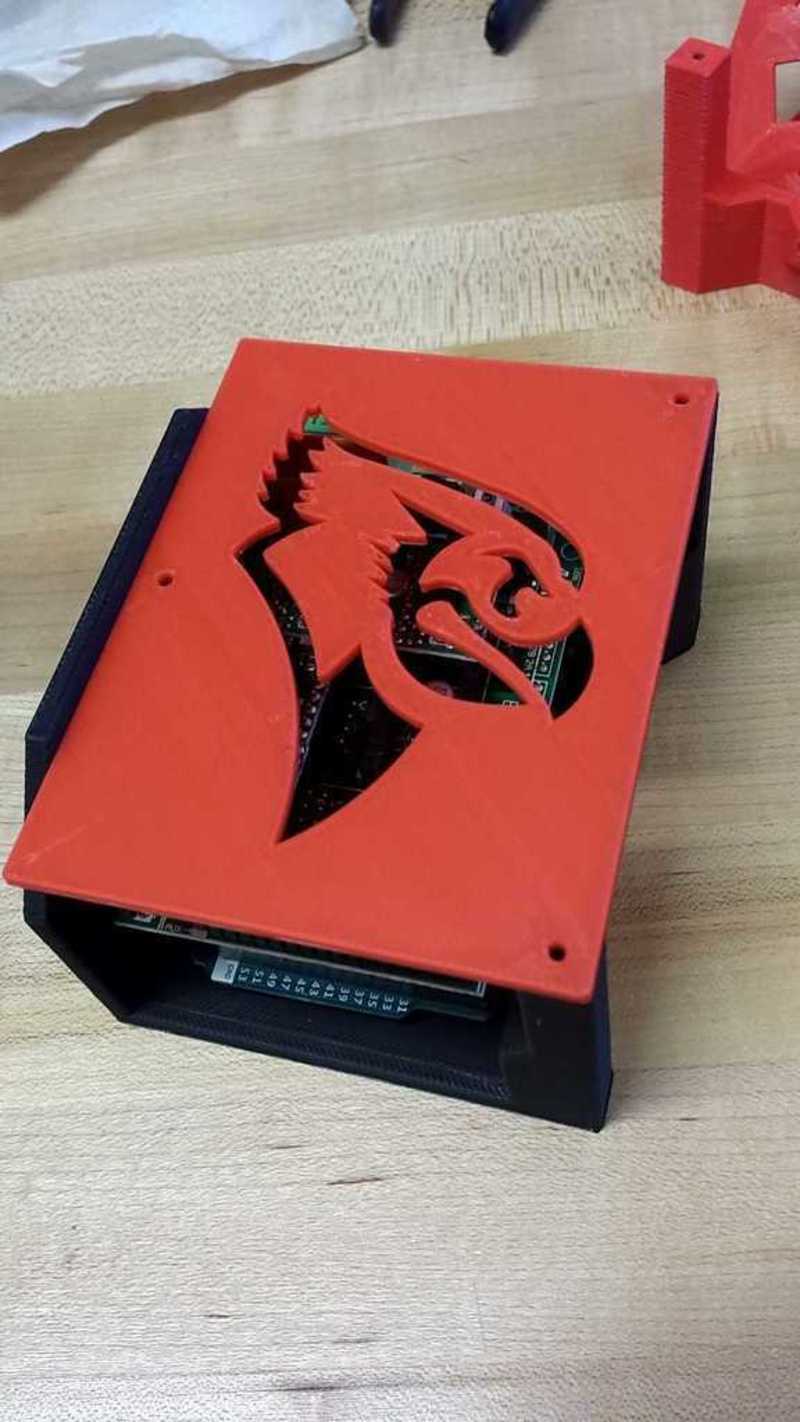

This part is intended to fit on the Flex Mendel printer. It is the housing for the controller (RAMPS). It took some trial and error to get the holes to line up with the holes on the board but they should line up. There is an extra support (without hole) to help support the board when it is being screwed on. These two parts are printed at 100% infill for strength. The top was designed by myself and intended to be used for 3D printers at Illinois State University.
This was created using NX 9.0. Part files are attached to make remixes easier.
