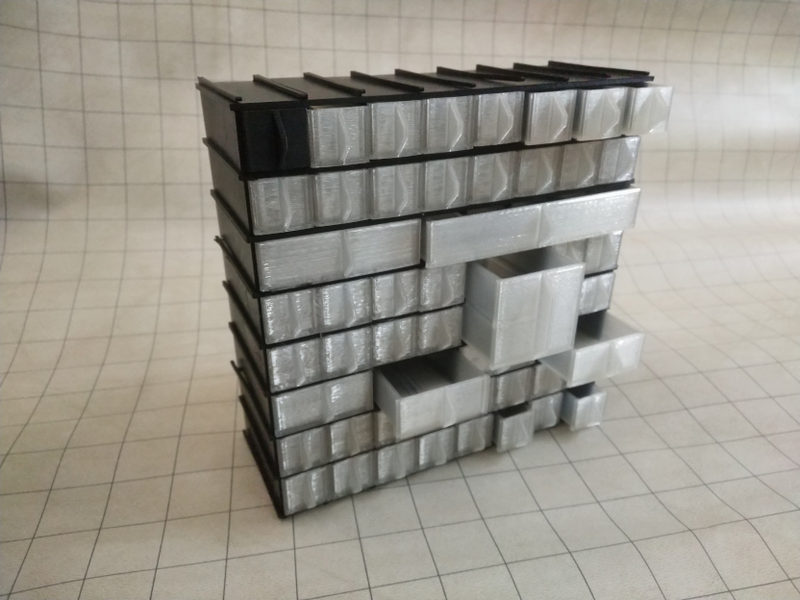

A small rack of drawers that can be snapped together and re-configured to match your needs.
Decide on a depth, 6cm, 9cm or 12cm. This is how deep the drawers will be and use the corresponding files with d06, d09 and d12 in them.
Next print out the walls that you will need to slide together to construct the holes for your drawers. I recommend drawing your drawer layout before deciding which walls to print, it will make it a lot easier to decide the length of the walls.
Once you have constructed your walls you can print out the corresponding drawers that you will need. The drawers come in 5 widths and 5 heights, from 1x1 to 5x5 and all 25 combinations in between. If you want a draw that is 3 blocks wide and 2 blocks high, use Drawer_w3h2d06.stl
I use my drawers to contain different resistors and electronics.
If you like this design you should check out my others at https://pinshape.com/users/355...
no raft required
no support required
tiny bridging required
Loading prints...
Bespoke Small Drawers for Tiny Things
Creative Commons Attribution-NonCommercial-NoDerivatives
You can download and share as long as you credit the creator, but you cannot change the material or use it for commercial purposes.
Licensed under CC BY-NC-ND
Files Included
123 downloadable files:
