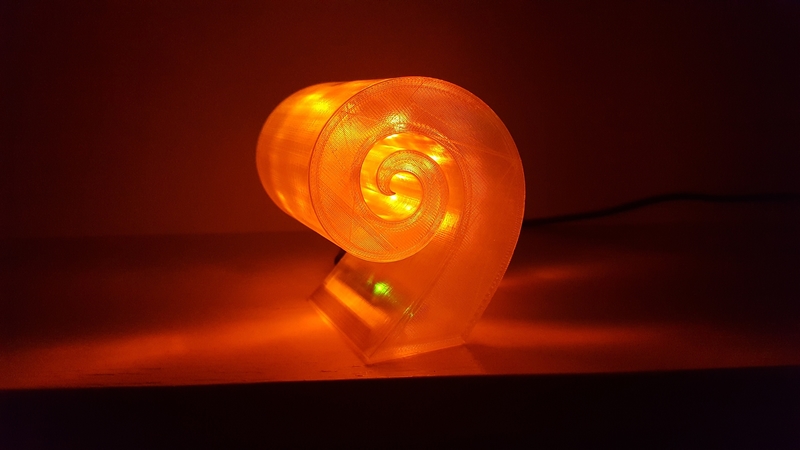

Simple ambient LED lamp that changes color
*re-shaped an old model on request.
The light source is an Arduino Nano and 4 neo pixels run on a phone charger. You can see it on one of the pictures.
The Arduino runs a slightly modified sketch from AdaFruit that shifts slowly between colors.
AdaFruit has made a library that makes this very simple (https://learn.adafruit.com/adafruit-neopixel-uberguide/arduino-library-use).
The sketch, library and schematic I used can be downloaded at :https://www.thingiverse.com/thing:3263294 or https://www.myminifactory.com/object/3d-print-nr-9-lamp-80616, due to the fact I can not upload zip file etc here on Pinshape.. :-(
The main body is printed in the “spiral outer contour mode” or 2 bottom layers, 1 wall layer, 0% infill & 0 top layers.
The “back plate.stl” is printed as normal. I tested this model with a 0.4mm nozzle and a 0.2mm resolution.
Everything should fit together without the use of glue.
If you have any questions feel free to ask :-) Constructive comments are also welcome :-)
Loading prints...
Nr 9 Lamp
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
Files Included
2 downloadable files:
