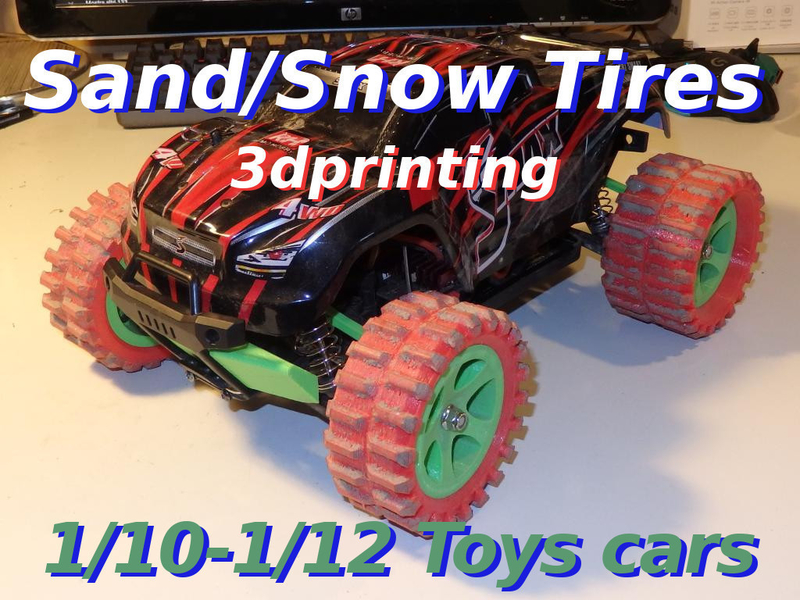

Hi, I made these tires for my little rc car to use with sand or snow, I use pla flex filament. The design is optimize for nozzle 0.4mm (ATTENTION, impossible to print with other nozzle size except 0.2mm) I add to the files the center core of tire for use to create own tires, file Mozzo-Copertone.stl . You can use it by adding it to your design
There is 3 version:
- B,C optimized design, easy to print, width 34mm and 44mm
- A is prototype with big lateral teeth but it have a little problem to well top close
Suggest print setting:
- 1 perimeter
- full infill (100%)
- layer 0.25
- top/bottom 1mm
For the wheels rims, no specific setting, I suggest to print as you see in image without any support.
On videos below I show version A and C in details and after the test run. In first video you can see the C version and in the second video the A version.
Loading prints...
Sand/Snow Tires for 1/10-1/12 rc toys cars
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
Files Included
6 downloadable files:
