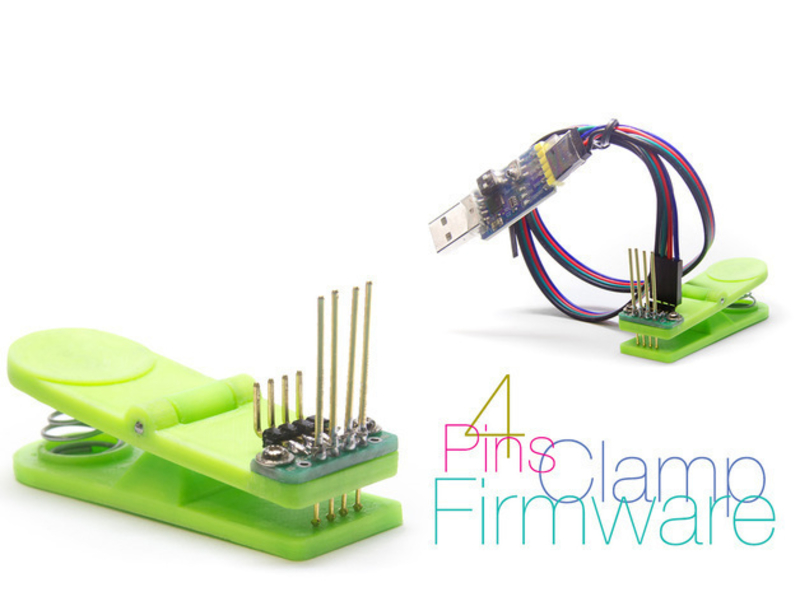

Clamp for firmware controllers 4 pins
See the video for details:
And this video is a demonstration of the work of a teaching device for playing a musical drum.
More information about this musical instrument and the project can be found here:
Update:In the updated details, I increased the thickness. And also look at the new model for 8 pins:
Links to used components:- Pogo Pins -
- Cylindrical-Pin -
- Mini Screw -
- Prototype PCB -
- Spring Contacts -
PS: Pogo Pin Connector 4 Pin , with such contacts it will turn out better, probably ... I will try another time ... I did it with those that were available...
