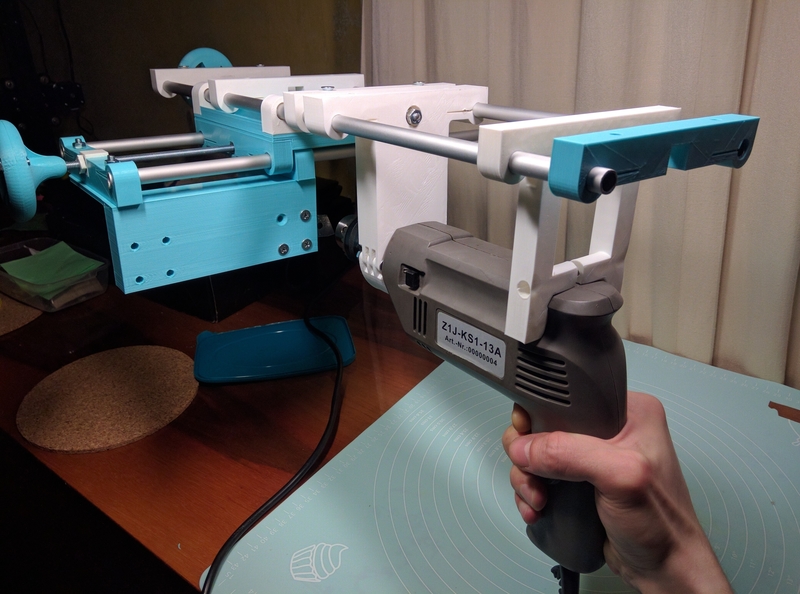

This tool engine for processing plastic parts. The main reason for quick working with small cylindrical shapes. It could be used as a cutting, drilling, milling machine, but requires additional tools and mostly for wood & plastic.
4 Bearings 3x8x12mm
About 1 meter threaded bar m6 and 2(better 6 for holding) m6 nuts
2 guades 10mm x 500mm and 2 guades 10 x 300mm (I used aluminium tube in a good shape)
34 countersunk screws m5 whith 34 nuts m5
For sliding bearings used teflon tube for bowden extruder
For increase the rigidity of the structure, use the plate and glue
