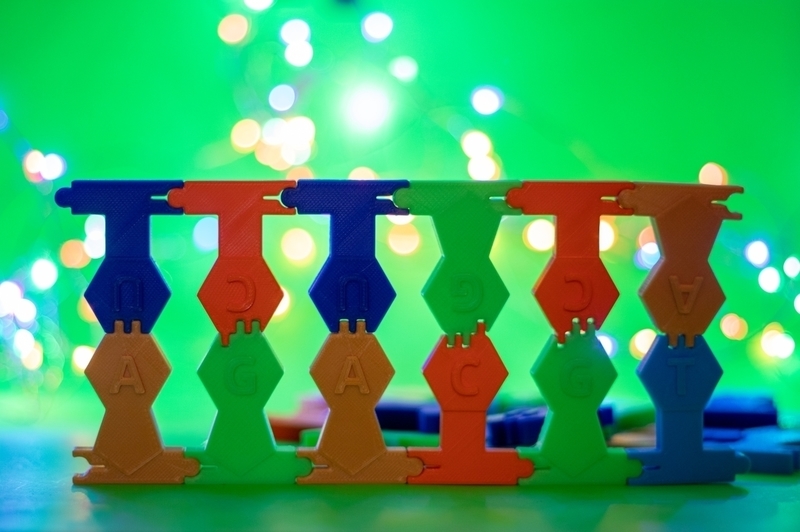

Remixed from the original design by chemteacher628 with improved design feature to allow for better joint connection, fitting, and easier 3D printing, this DNA/RNA building set allows students to learn about DNA and RNA through playing with the toy blocks.
This remix is designed by Ana Wallis (PhD student from the Nieduszynski lab, Sir William Dunn School of Pathology) and myself to offer outreach activities for local schools, supported by St. John’s College, University of Oxford.
The built-in tension of the joint allows for a generous tolerance needed for most desktop 3D printers. The chamfer of the edges (only at the joints) compensates for the ‘elephant foot problem’ that often decrease tolerances, making it much harder to fit pieces together. In addition, it also allows for a smoother fitting from both sides.
With a chamfer of 0.6 mm at the bottom, you can safely print with a vertical resolution of up to 0.3 mm. No raft or support material required.
Loading prints...
DNA/RNA Building Toy Set with Improved Joints
Creative Commons Attribution-NonCommercial-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.
Licensed under CC BY-NC-SA
